Product Description

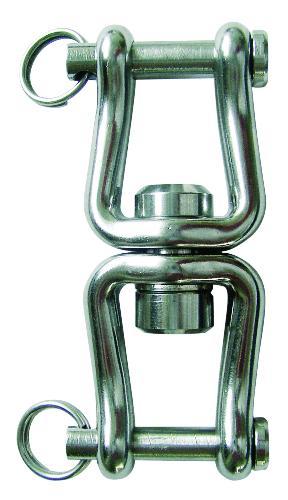

Tylaska 2 3/4" T5 Clevis/Clevis Bail Swivel
Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.
Specifications:
Shackle Type: T5 Clevis Bail/Clevis Bail Swivel
Safe Working Load (lb.): 2,500 (1,130kg)
Breaking Strength (lb.): 5,000 (2,270kg)
Weight (oz.): 2.9

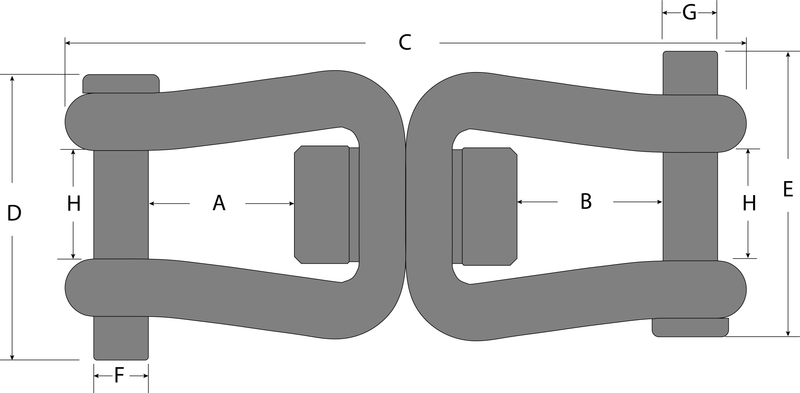

Dimensions:
A (in.): 0.64" (16.3mm)
B (in.): 0.64" (16.3mm)
C (in.): 2.77" (70.4mm)
D (in.): 1.30" (33mm)
E (in.): 1.30" (33mm)
F (in.): 0.24" (6.1mm)
G (in.): 0.24" (6.1mm)
H (in.): 0.55" (14mm)
