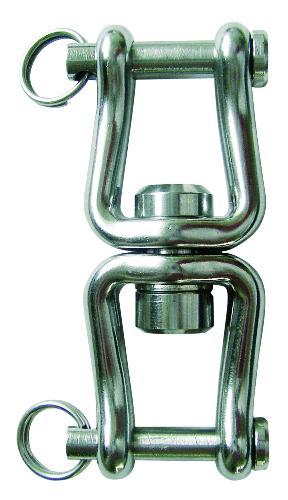

Tylaska 3 13/16" T12 Clevis/Clevis Bail Swivel

Item #

TY1212-CC

Usually ships within 1-3 days

Product Description

Tylaska 3 13/16" T12 Clevis/Clevis Bail Swivel

Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.

Specifications

  • Shackle Type - T12 Clevis Bail/Clevis Bail Swivel

  • Safe Working Load(lb.) - 6,000 (2,720kg)

  • Breaking Strength(lb.) - 12,000 (5,440kg)

  • Weight(oz.) - 7

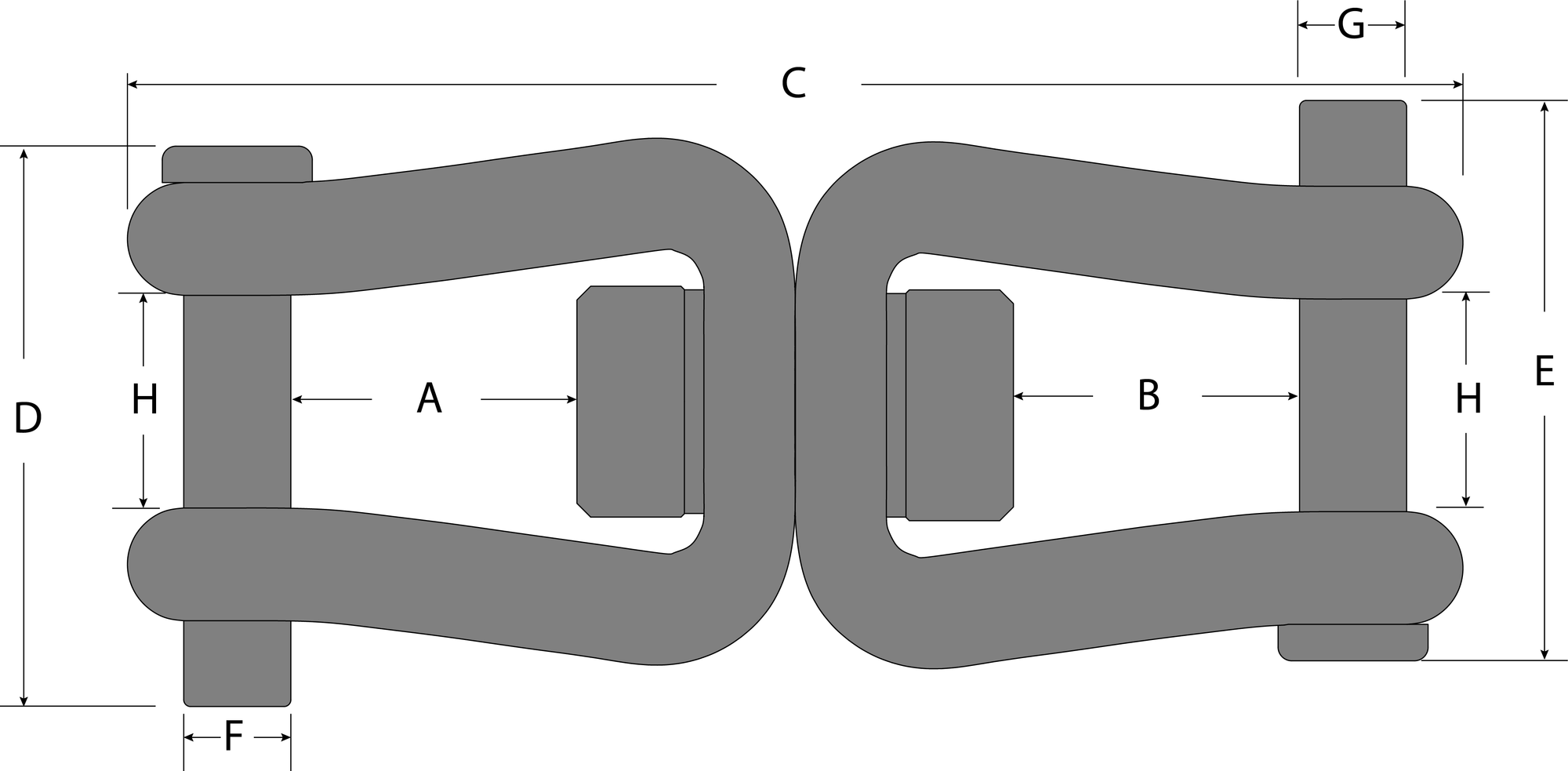

    Dimensions

  • A(in.) - 0.89" (22.6mm)

  • B(in.) - 0.89" (22.6mm)

  • C(in.) - 3.79" (96.3mm)

  • D(in.) - 1.62" (41.2mm)

  • E(in.) - 1.62" (41.2mm)

  • F(in.) - 0.31" (7.9mm)

  • G(in.) - 0.31" (7.9mm)

  • H(in.) - 0.62" (15.8mm)
