Product Description

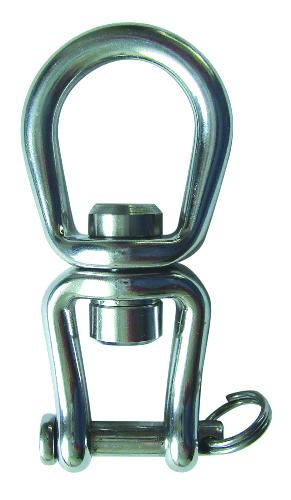

Tylaska 3 7/16" T8 Large/Clevis Bail Swivel
Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.
Specifications
Shackle Type - T8 Large/Clevis Bail Swivel
Safe Working Load(lb.) - 4,000 (1,810kg)
Breaking Strength(lb.) - 8,000 (3,630kg)
Weight(oz.) - 4.1

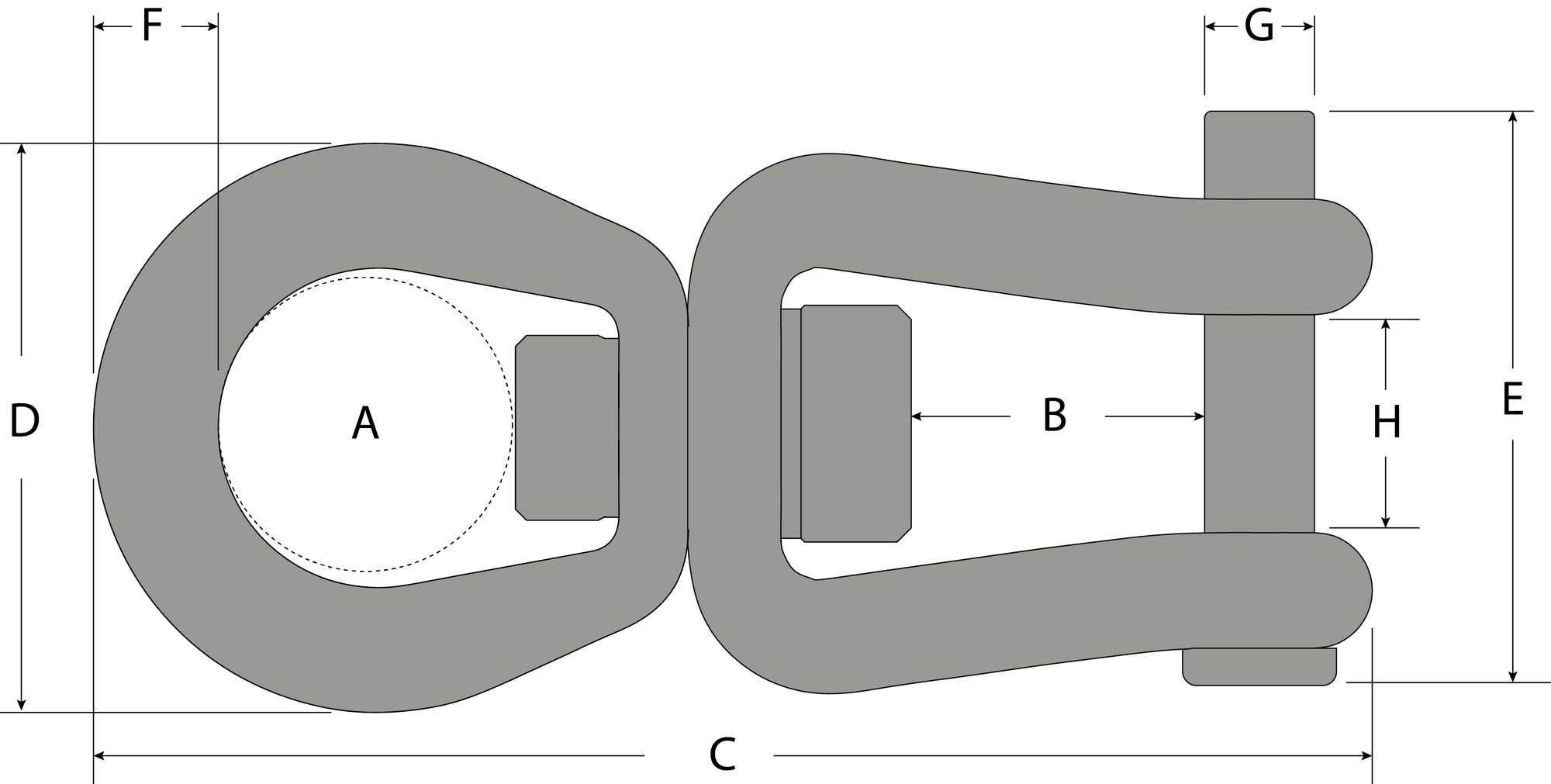

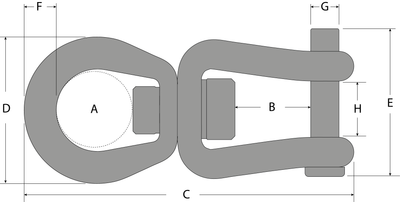

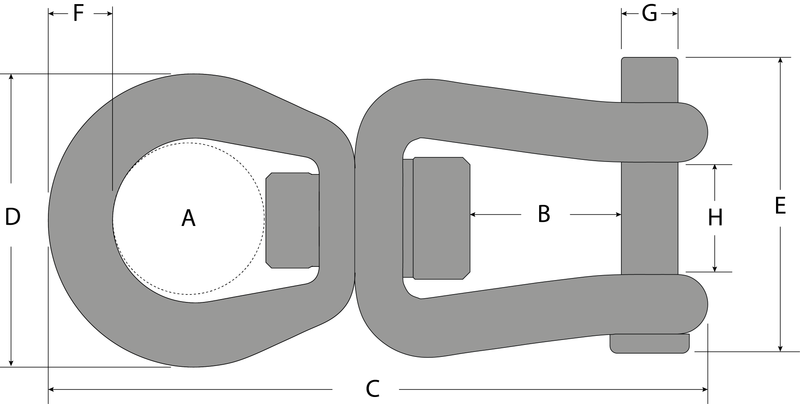

Dimensions
A(in.) - 0.95" (24.1mm)
B(in.) - 0.66" (16.8mm)
C(in.) - 3.48" (88.4mm)
D(in.) - 1.71" (43.4mm)
E(in.) - 1.37" (76.2mm)
F(in.) - 0.34" (8.6mm)
G(in.) - 0.27" (6.9mm)
H(in.) - 0.52" (13.2mm)
