Product Description

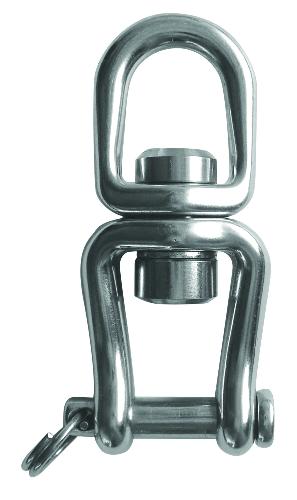

Tylaska 3 9/16" T12 Standard/Clevis Bail Swivel

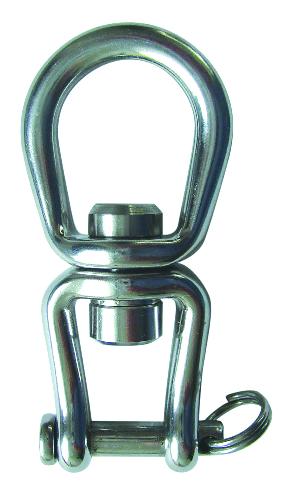

Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.
Specifications
Shackle Type - T12 Standard/Clevis Bail Swivel
Safe Working Load(lb.) - 6,000 (2,720kg)
Breaking Strength(lb.) - 12,000 (5,440kg)
Weight(oz.) - 5.6

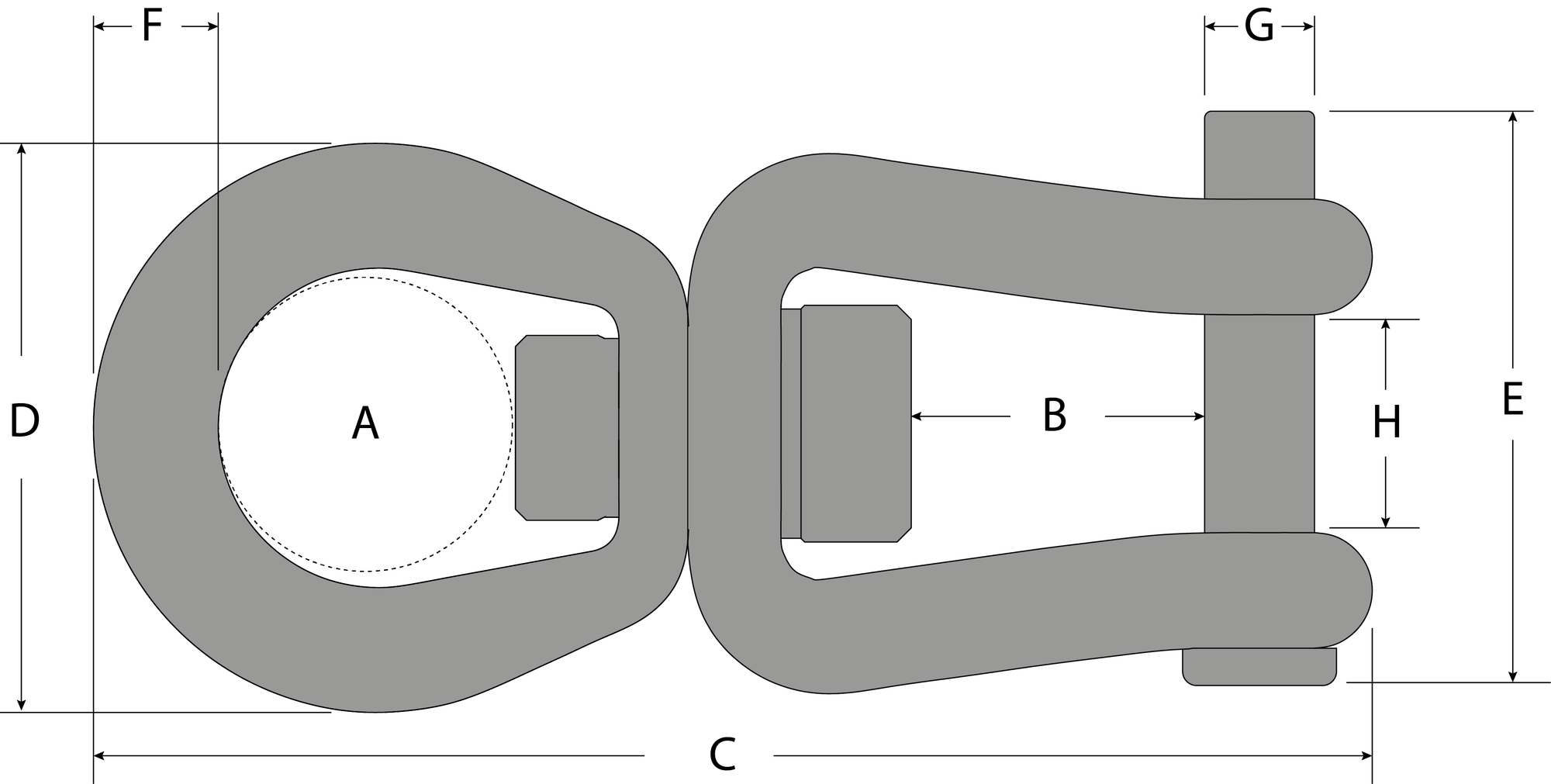

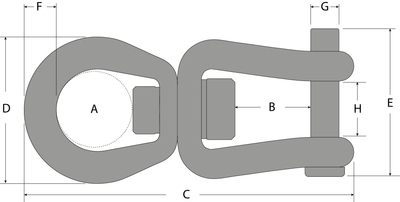

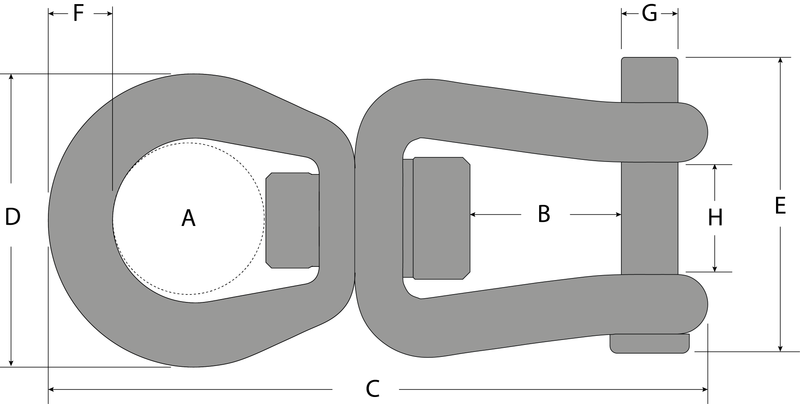

Dimensions
A(in.) - 0.72" (18.3mm)
B(in.) - 0.89" (22.6mm)
C(in.) - 3.53" (89.7mm)
D(in.) - 1.39" (35.3mm)
E(in.) - 1.62" (41.2mm)
F(in.) - 0.33" (8.4mm)
G(in.) - 0.31" (7.9mm)
H(in.) - 0.62" (15.8mm)
