Product Description

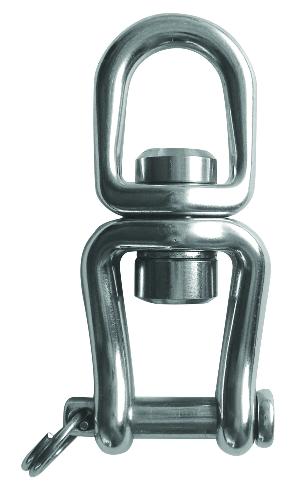

Tylaska 5 11/16" T30 Standard/Clevis Bail Swivel
Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.
Specifications
Shackle Type - T30 Standard/Clevis Bail Swivel
Safe Working Load(lb.) - 15,000 (6,800kg)
Breaking Strength(lb.) - 30,000 (13,610kg)
Weight(oz.) - 23.1

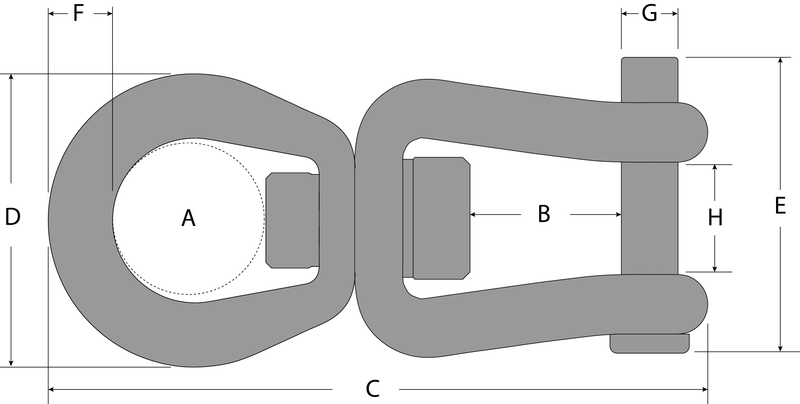

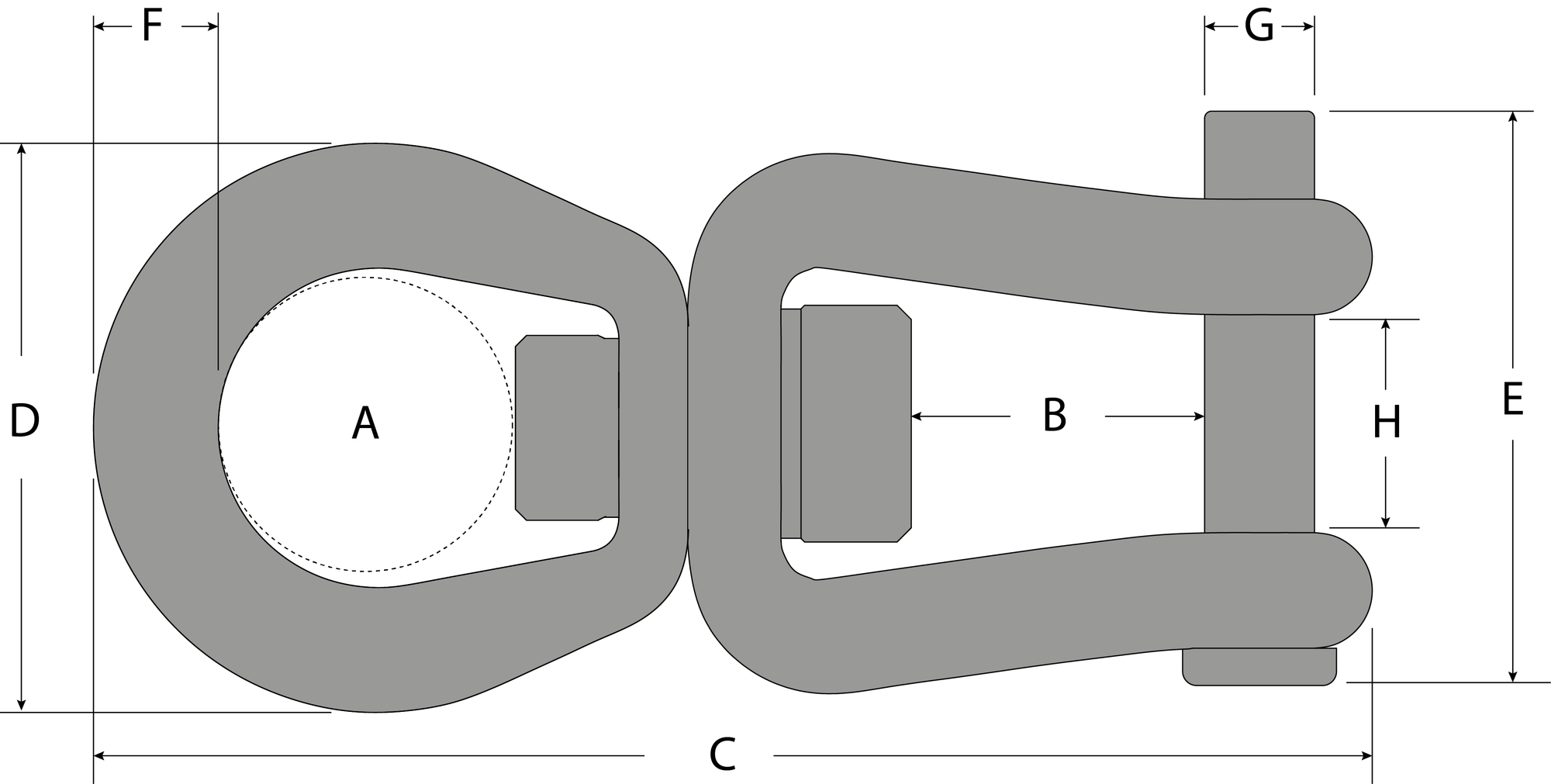

Dimensions
A(in.) - 1.20" (30.5mm)
B(in.) - 1.29" (32.8mm)
C(in.) - 5.91" (150.1mm)
D(in.) - 2.28" (57.9mm)
E(in.) - 2.60" (66mm)
F(in.) - 0.55" (26mm)
G(in.) - 0.56" (14.2mm)
H(in.) - 1.06" (16.9mm)
