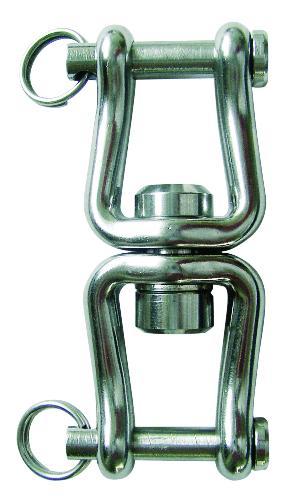

Tylaska 6 1/8" T30 Clevis/Clevis Bail Swivel

Tylaska 6 1/8" T30 Clevis/Clevis Bail Swivel

Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.

Specifications:

Shackle Type: T30 Clevis Bail/Clevis Bail Swivel

Safe Working Load (lb.): 15,000 (6,800kg)

Breaking Strength (lb.): 30,000 (13,610kg)

Weight (oz.): 29.1

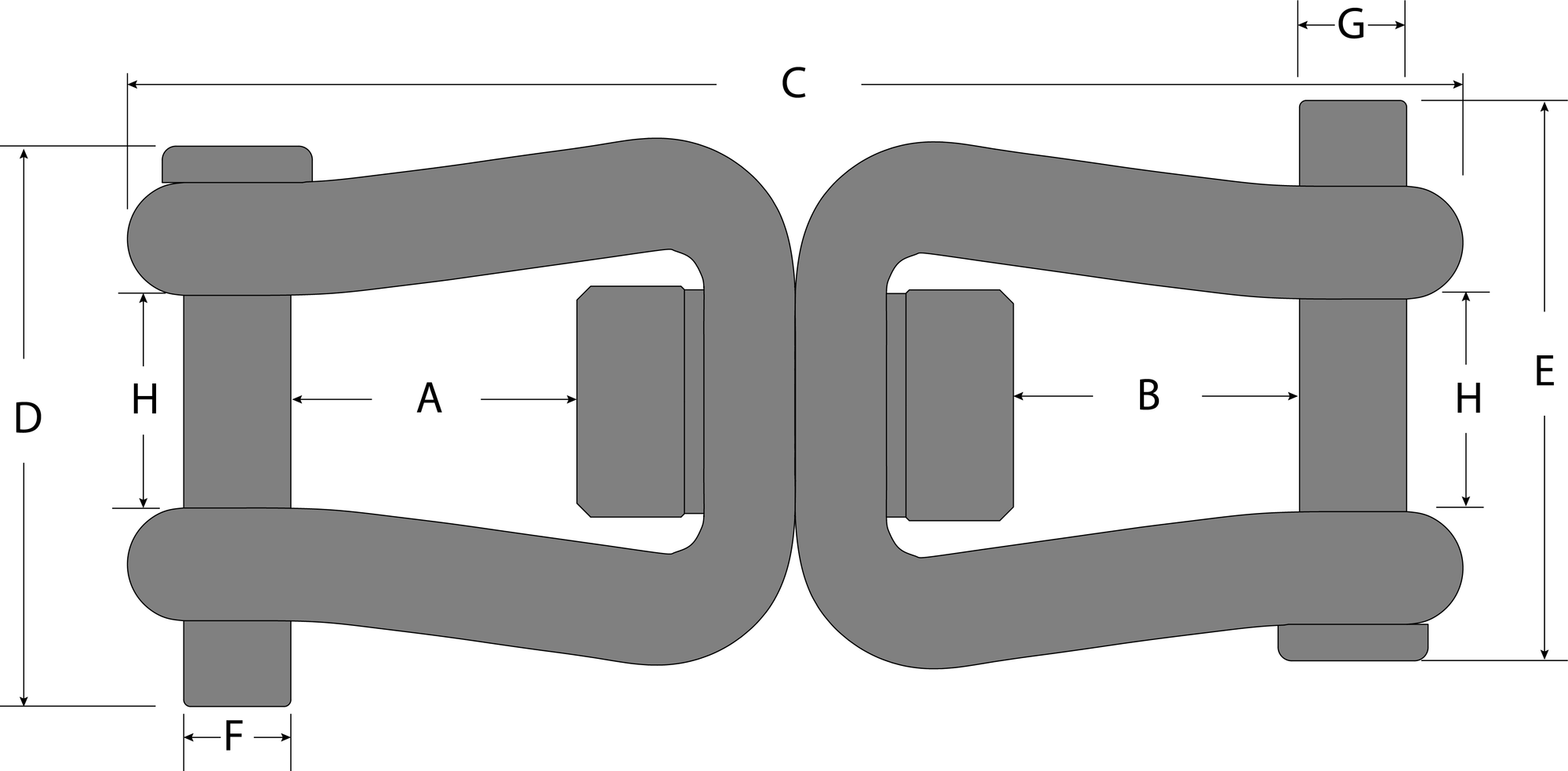

Dimensions:

A (in.): 1.29" (32.8mm)

B (in.): 1.29" (32.8mm)

C (in.): 6.28" (159.5mm)

D (in.): 2.60" (66mm)

E (in.): 2.60" (66mm)

F (in.): 0.56" (14.2mm)

G (in.): 0.56" (14.2mm)

H (in.): 1.06" (16.9mm)
