Product Description

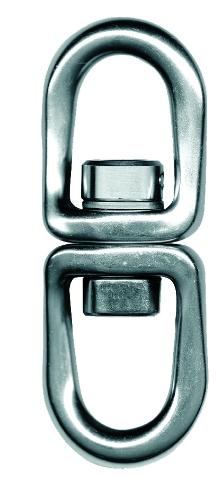

Tylaska 5 1/2" T30 Standard/Standard Bail Swivel
Standard Bails provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.
Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.
Specifications:
Shackle Type: T30 Std/Std Bail Swivel
Safe Working Load (lb.): 15,000 (6,800kg)
Breaking Strength (lb.): 30,000 (13,610kg)
Weight (oz.): 20.0

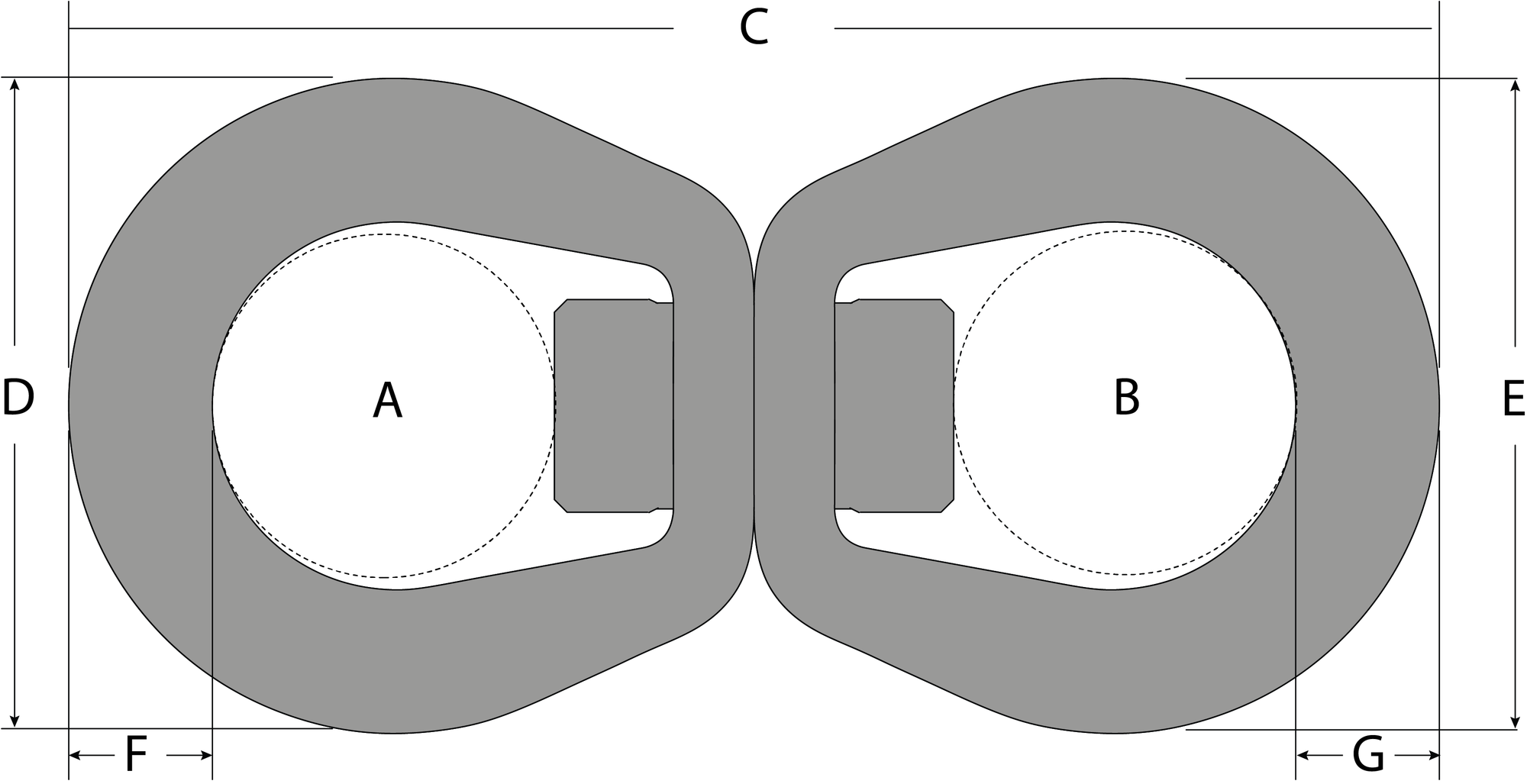

Dimensions:
A (in.): 1.20" (30.5mm)
B (in.): 1.20" (30.5mm)
C (in.): 5.54" (140.7mm)
D (in.): 2.28" (57.9mm)
E (in.): 2.28" (57.9mm)
F (in.): 0.55" (26mm)
G (in.): 0.55" (26mm)
