Product Description

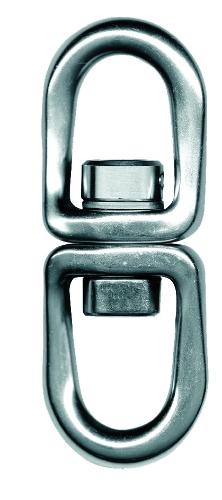

Tylaska 3 1/4" T12 Standard/Standard Bail Swivel
Standard Bails provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.
Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.
Specifications:
Shackle Type: T12 Std/Std Bail Swivel
Safe Working Load (lb.): 6,000 (2,720kg)
Breaking Strength (lb.): 12,000 (5,440kg)
Weight (oz.): 4.4

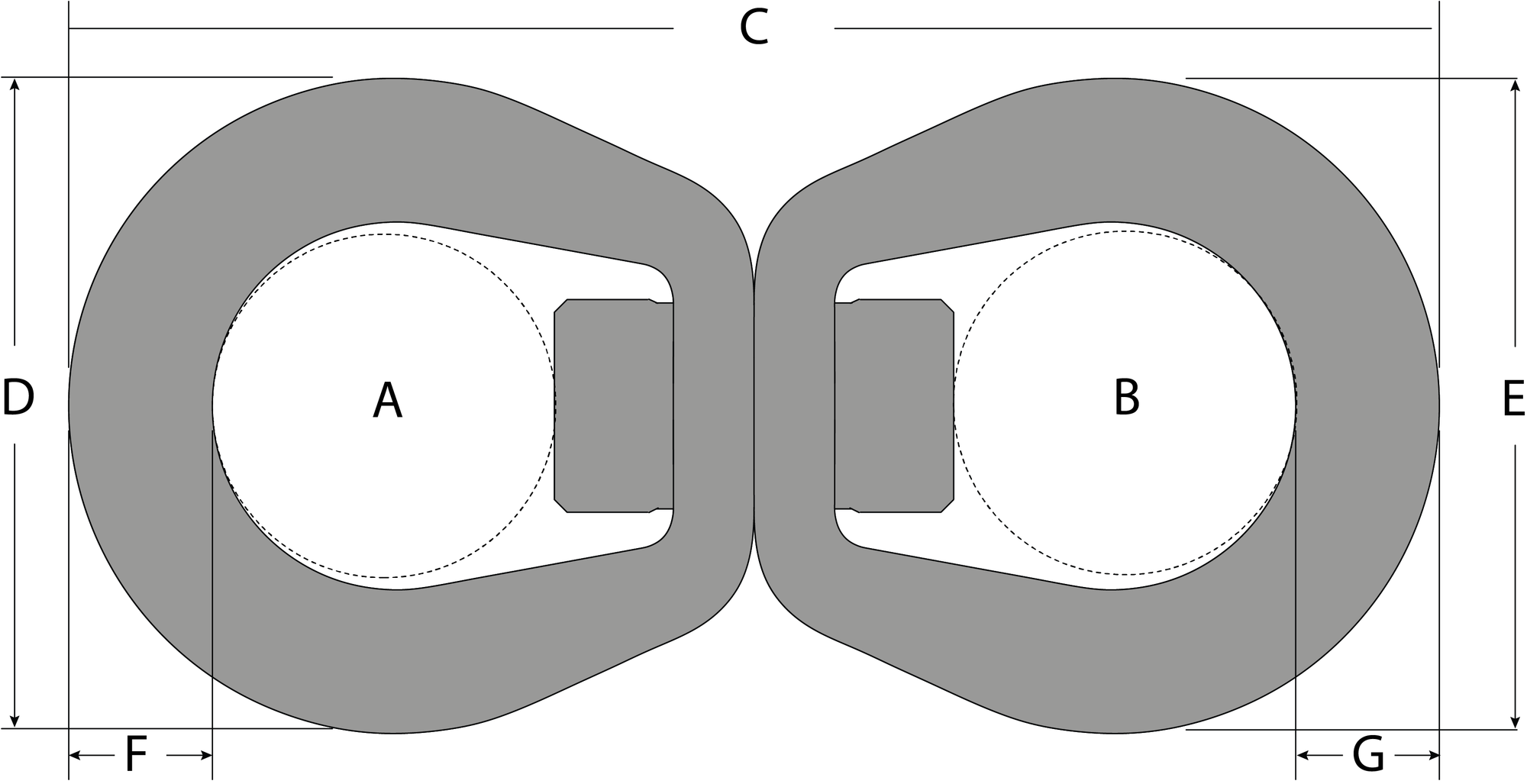

Dimensions:
A (in.): 0.72" (18.3mm)
B (in.): 0.72" (18.3mm)
C (in.): 3.35" (85.1mm)
D (in.): 1.39" (35.3mm)
E (in.): 1.39" (35.3mm)
F (in.): 0.30" (8.4mm)
G (in.): 0.30" (8.4mm)
