Product Description

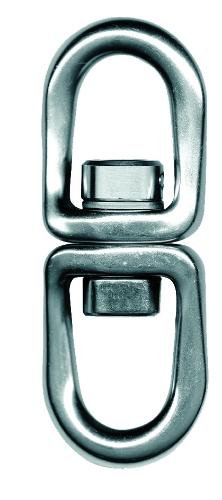

Tylaska 4 11/16" T20 Standard/Standard Bail Swivel
Standard Bails provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.
Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.
Specifications:
Shackle Type: T20 Std/Std Bail Swivel
Safe Working Load (lb.): 10,000 (4,540kg)
Breaking Strength (lb.): 20,000 (9,070kg)
Weight (oz.): 9.9

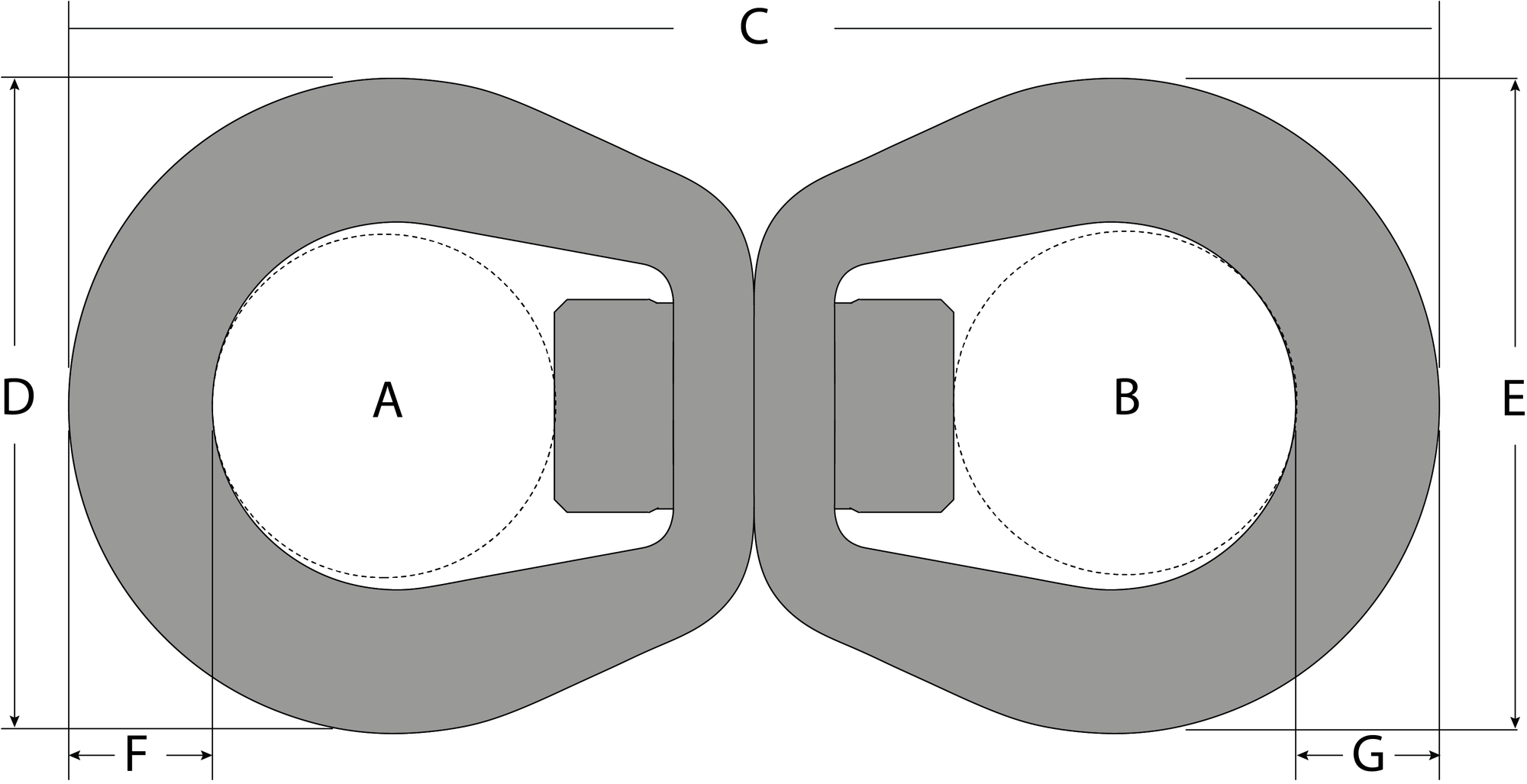

Dimensions:
A (in.): 0.99" (25.1mm)
B (in.): 0.99" (25.1mm)
C (in.): 4.44" (112.8mm)
D (in.): 1.86" (47.2mm)
E (in.): 1.86" (47.2mm)
F (in.): 0.44" (11.2mm)
G (in.): 0.44" (11.2mm)
