Product Description

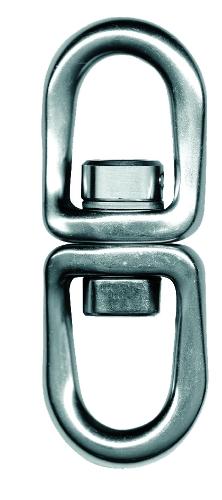

Tylaska 2 3/8" T5 Standard/Standard Bail Swivel
Standard Bails provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.
Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.
Specifications:
Shackle Type: T5 Std/Std Bail Swivel
Safe Working Load (lb.): 2,500 (1,130kg)
Breaking Strength (lb.): 5,000 (2,270kg)
Weight (oz.): 1.8

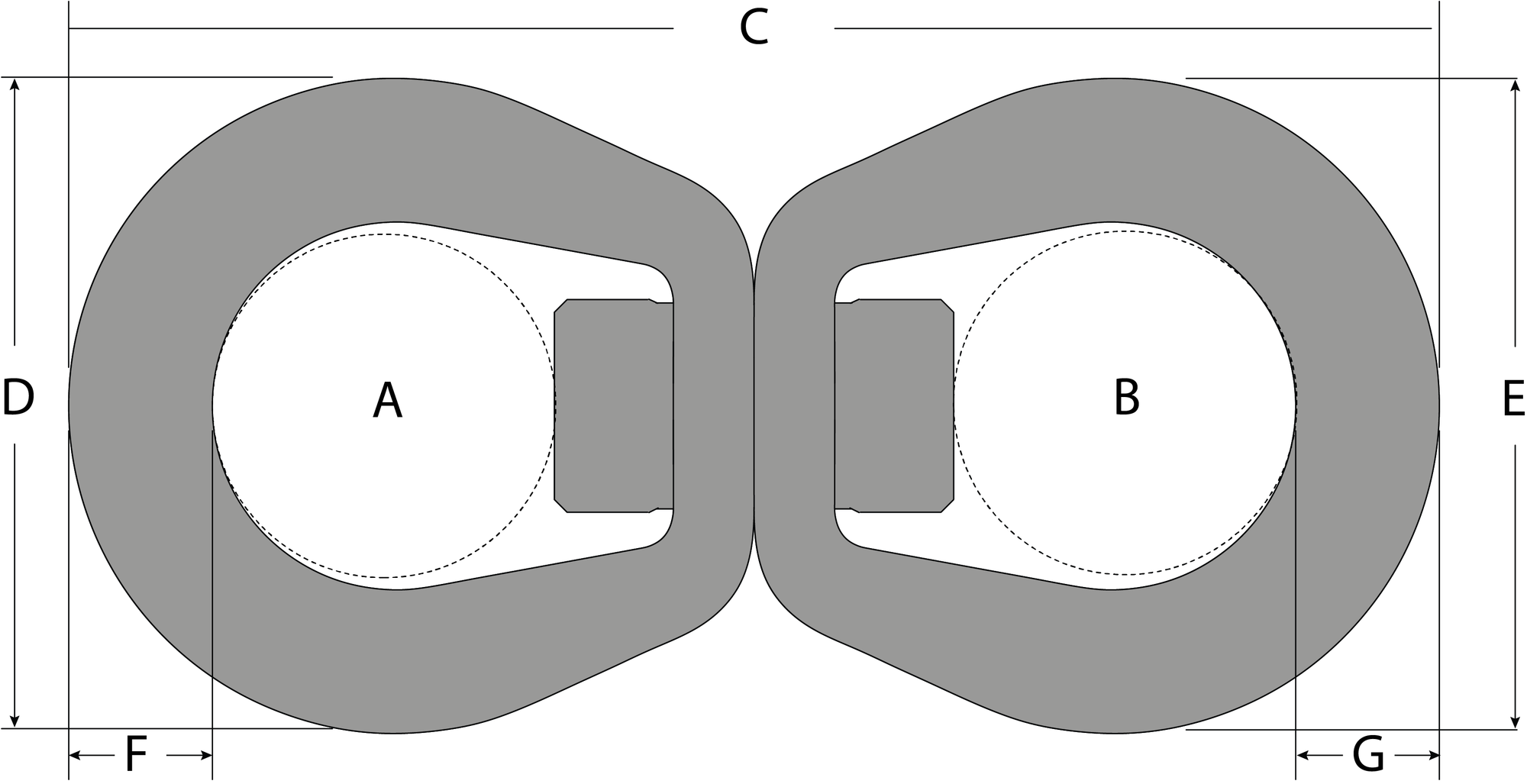

Dimensions:
A (in.): 0.53" (13.5mm)
B (in.): 0.53" (13.5mm)
C (in.): 2.44" (61.9mm)
D (in.): 1.01" (25.7mm)
E (in.): 1.01" (25.7mm)
F (in.): 0.24" (6.1mm)
G (in.): 0.24" (6.1mm)
