Product Description

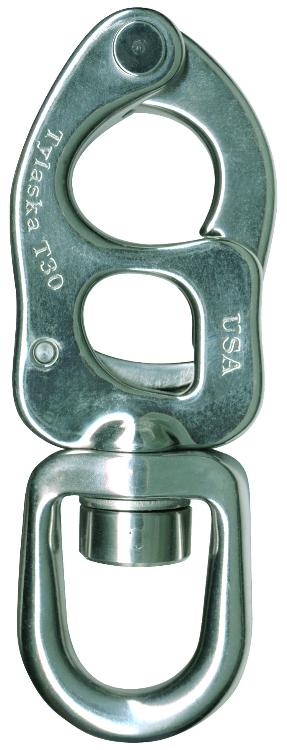

Tylaska 6 3/8" T30 Standard Bail Snap Shackle
Tylaska T30 is designed for large sailboats that need to support strong loads. With a breaking strength of 30,000 pounds, this shackle can handle sail loads on the largest of sailboats. A number of around-the-world racing teams utilize the T30.
Specifications:
Safe Working Load (lb.): 15,000 (6,800kg)
Breaking Strength (lb.): 30,000 (13,610kg)
Boat Size:(ft.): 60'+
Weight (oz.): 26.8 (760g)

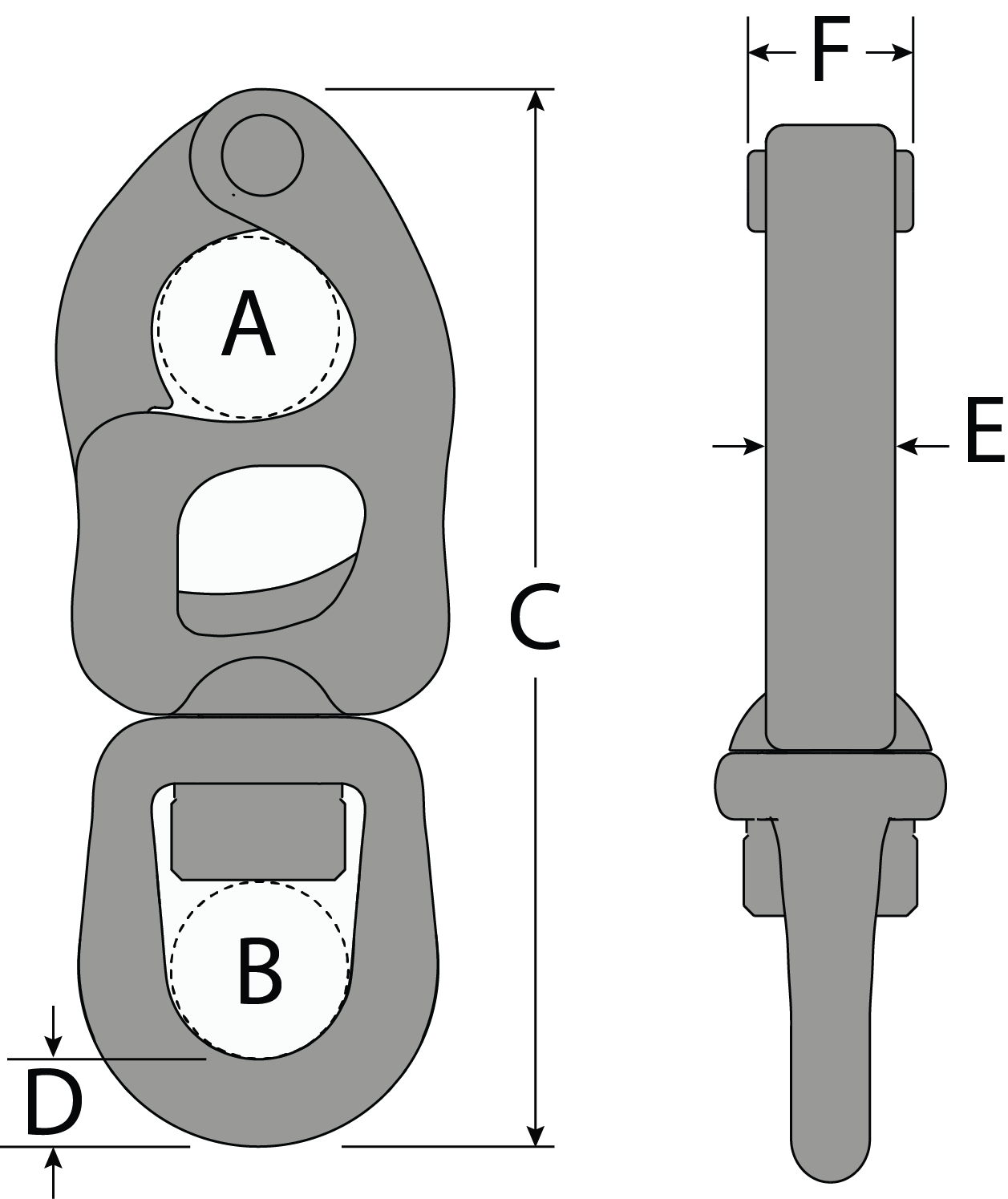

Dimensions:
A (in.): 1.23" (31.2mm)
B (in.): 1.20" (30.5mm)
C (in.): 6.55" (166.4mm)
D (in.): 0.56" (14.2mm)
E (in.): 0.77" (19.6mm)
F (in.): 0.97" (24.7mm)
