Tylaska 2 15/16" T5 Standard Bail Snap Shackle

Item #

TY1005-S

Product Description

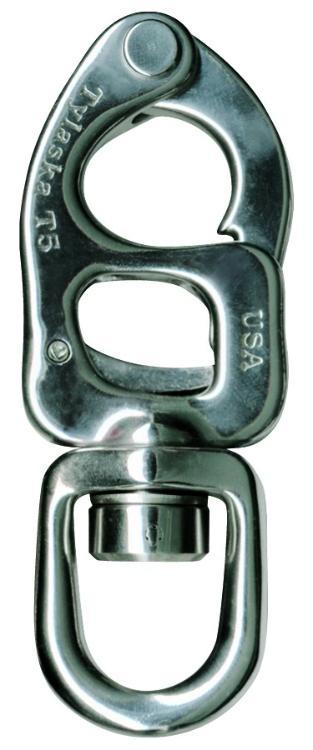

Tylaska 2 15/16" Standard Bail Snap Shackle

Tylaska T5 Snap Shackles are perfect for small boat applications requiring high strength and low weight. They have a breaking strength of 5,000 lbs and weigh just 2.2 ounces in the standard bail configuration. Ideal for J-24s, Mumm 30s and similar boats.

Specifications

  • Shackle Type - T5 Standard Bail

  • Safe Working Load(lb.) - 2,500 (1,130kg)

  • Breaking Strength(lb.) - 5,000 (2,270kg)

  • Boat Size(ft.) - 20'-30'

  • Weight(oz.) - 2.2 (62g)

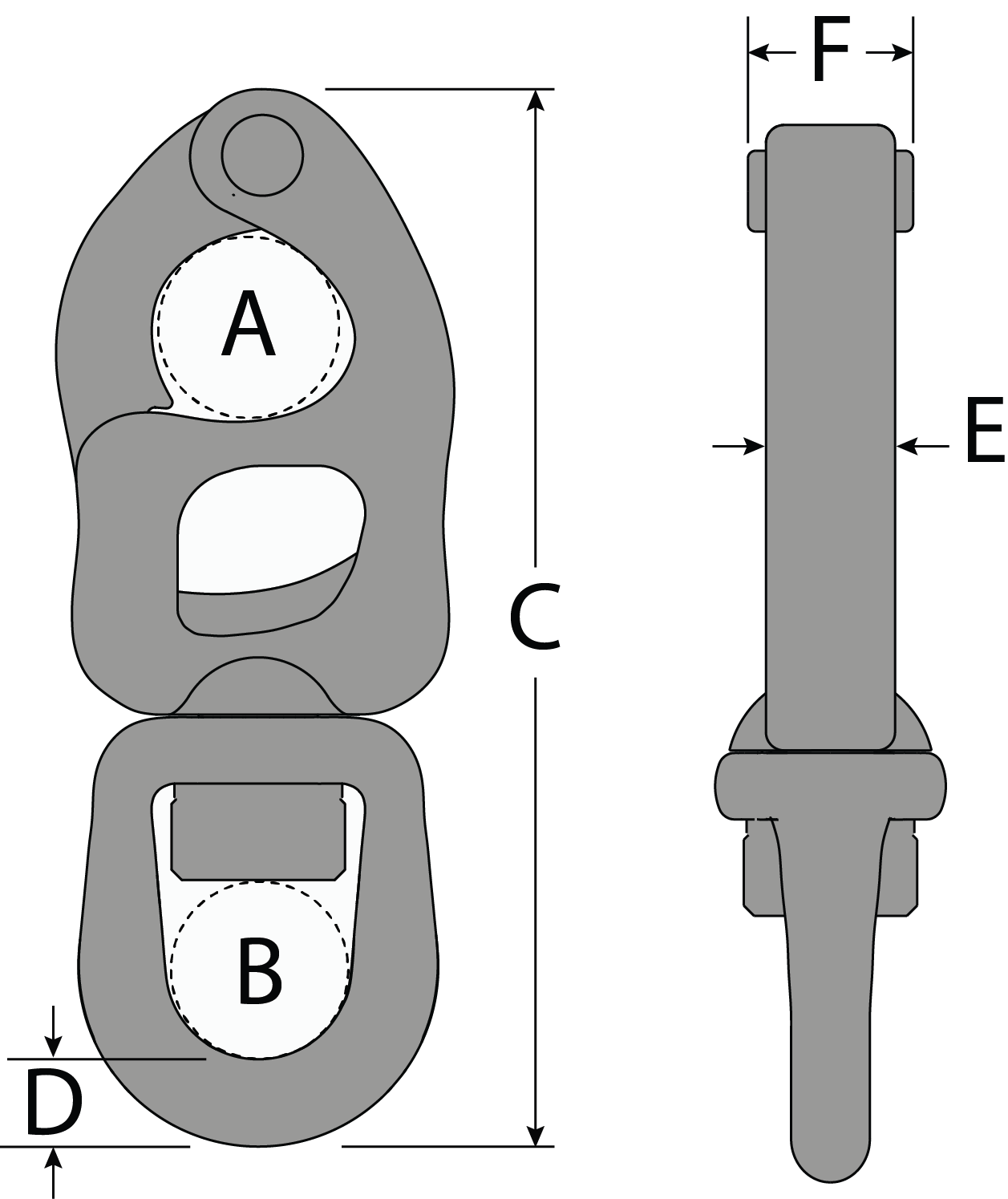

    Dimensions

  • A - 0.53" (13.5mm)

  • B - 0.50" (12.7mm)

  • C - 3.02" (76.7mm)

  • D - 0.23" (5.8mm)

  • E - 0.30" (7.6mm)

  • F - 0.44" (11.1mm)
  •
