Product Description

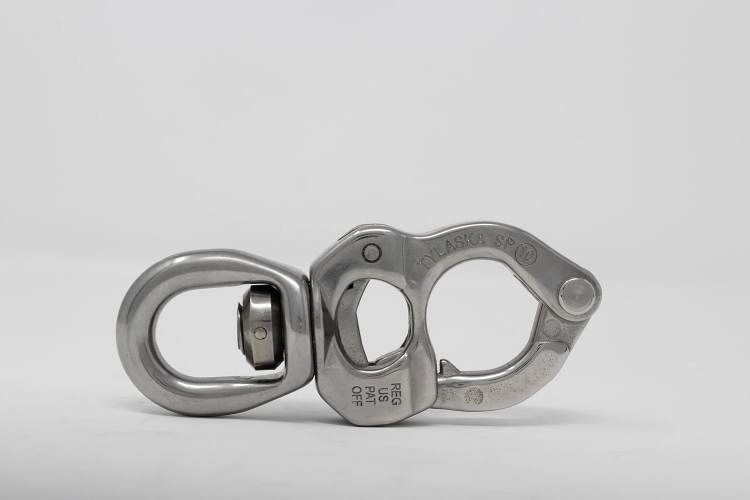

Tylaska SP10 Trigger Style Snap Shackle
Tylaska’s SP snap shackles are a retrofit of the old Sparcraft designed trigger release snap shackles. Made from the same durable 17-4PH stainless as before, the castings are now hipped to create a finished part similar to a forging in strength and metal consistency. While not as capable of high-load releases as the T shackle, the SP shackle is still a high quality and rugged shackle that lives up to the Tylaska name it carries. SP snap shackles offer a larger eye and are a more economic choice when compared with their T shackle counterparts.
Specifications:
A: .875in (22mm)
B: .875in (22mm)
C: 5.000in (127mm)
Weight: 11.4oz (.64Lb)
Work Load: 10,000Lb (4,535Kg)
Breaking Strength: 20,000Lb (9,071Kg)
Tylaska has also revived the old #10 snap shackle and has renamed the time proven design the Tylaska SP10.
From the windy waters off Sardina to the rough and trying seas for 12-Meters off of Freemantle, the #10 has been there.
This shackle has been the workhorse of most major races for decades.
Made from investment cast and hipped 17-4PH stainless and suitable for boats 50’ to 100’.
