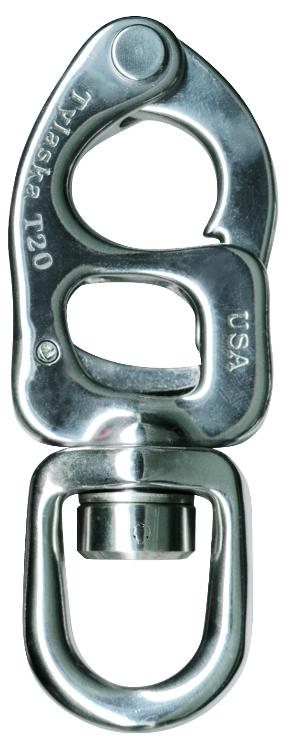

Tylaska 5" T20 Standard Bail Snap ShackleShackle Type - T20 Standard Bail
The T20 is a larger shackle designed for mid to large sized boats. They are popular on the America's Cup racing circuit. The T-20 has a breaking strength of 20,000 lbs. Standard bail configurations weigh only 11.9 oz. Ideal for 40 to 70 foot sailboats.
Safe Working Load(lb.) - 10,000 (4,540kg)
Breaking Strength(lb.) - 20,000 (9,070kg)
Boat Size(ft.) - 40'-70'
Weight(oz.) - 12.7 (360g)

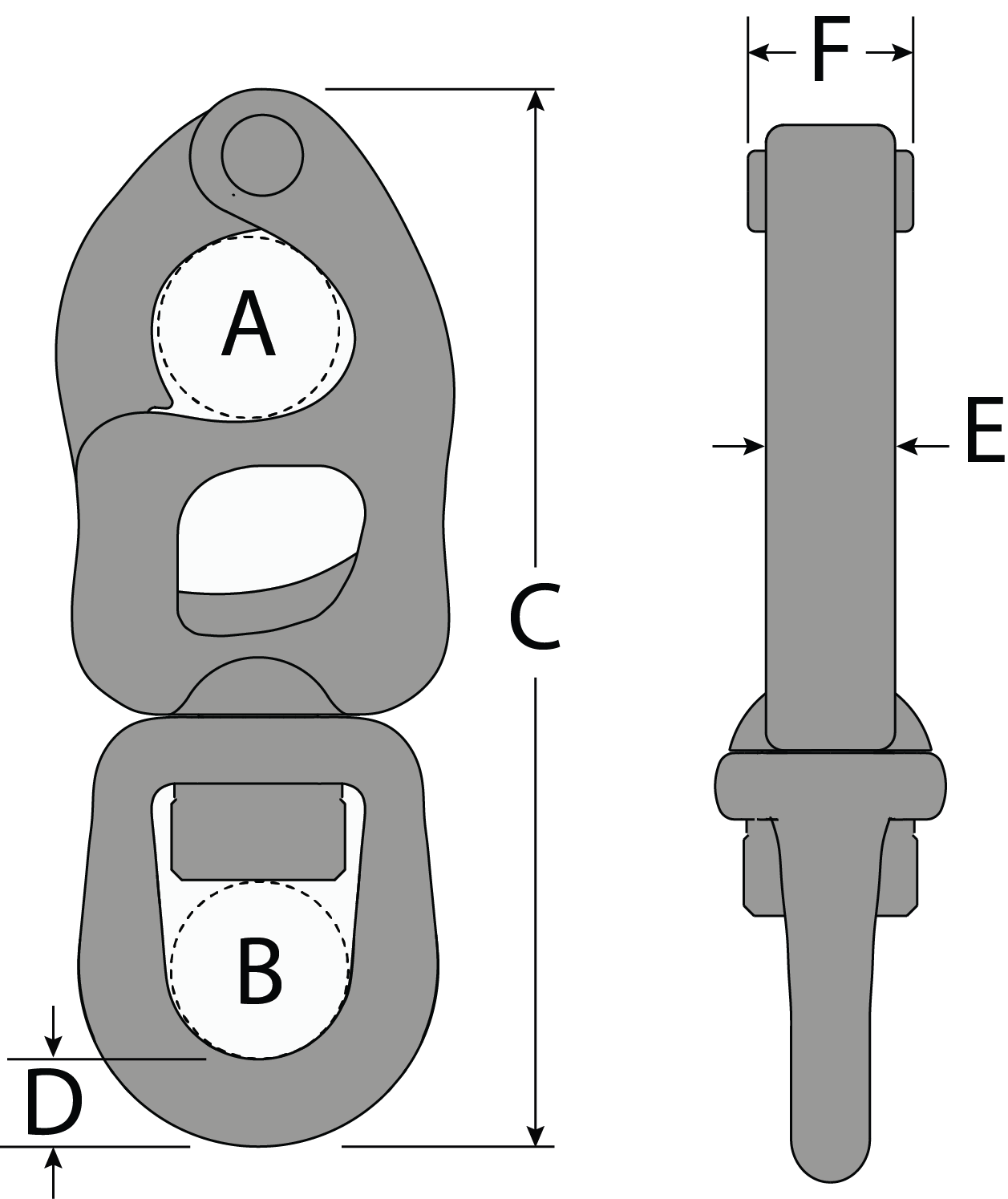

A(in.) - 0.99" (25.1mm)
B(in.) - 0.99" (25.1mm)
C(in.) - 5.27" (134mm)
D(in.) - 0.45" (11.4mm)
E(in.) - 0.55" (14mm)
F(in.) - 0.75" (19mm)
