Tylaska 6 13/16" T30 Clevis Bail Snap Shackle

Item #

TY1030-CR

Usually ships within 1-3 days

Product Description

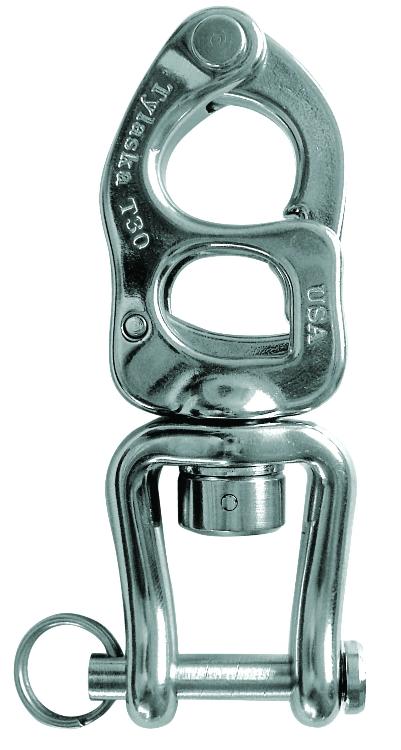

Tylaska 6 13/16" T30 Clevis Bail Snap Shackle

Tylaska T30 is designed for large sailboats that need to support strong loads. With a breaking strength of 30,000 pounds, this shackle can handle sail loads on the largest of sailboats. A number of around-the-world racing teams utilize the T30.

Specifications:

Shackle Type: T30 Clevis Bail

Safe Working Load (lb.): 15,000 (6,800kg)

Breaking Strength (lb.): 30,000 (13,610kg)

Boat Size (ft.): 60' - 80'

Weight (oz.): 31.7 (899g)

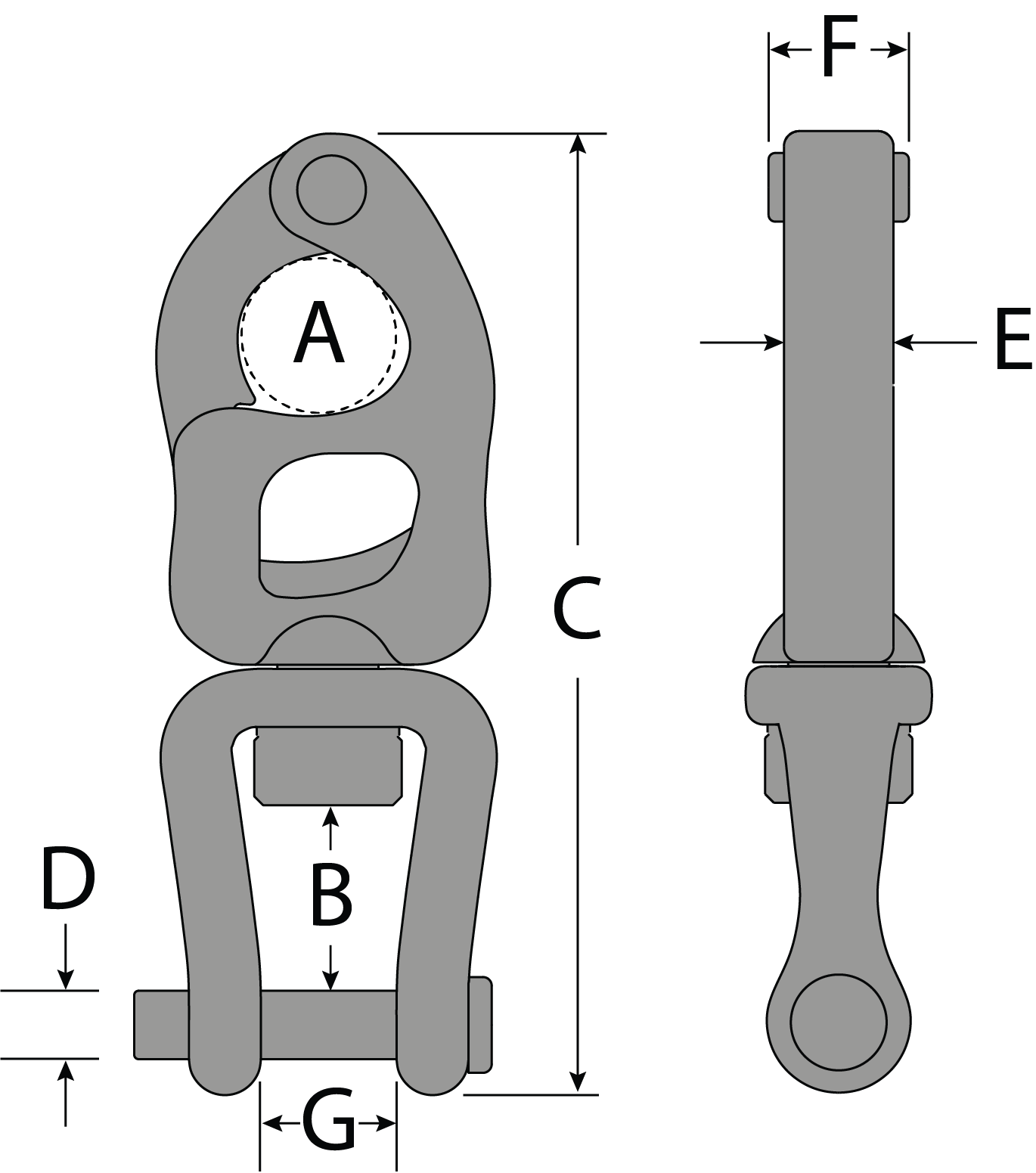

Dimensions:

A (in.): 1.23" (31.2mm)

B (in.): 1.29" (32.8mm)

C (in.): 6.91" (175.5mm)

D (in.): 0.56" (14.3mm)

E (in.): 0.77" (19.6mm)

F (in.): 0.97" (24.7mm)

G (in.): 1.03" (26.2mm)
