Tylaska 5 5/8" T20 Clevis Bail Snap Shackle

Item #

TY1020-CR

Usually ships within 1-3 days

Product Description

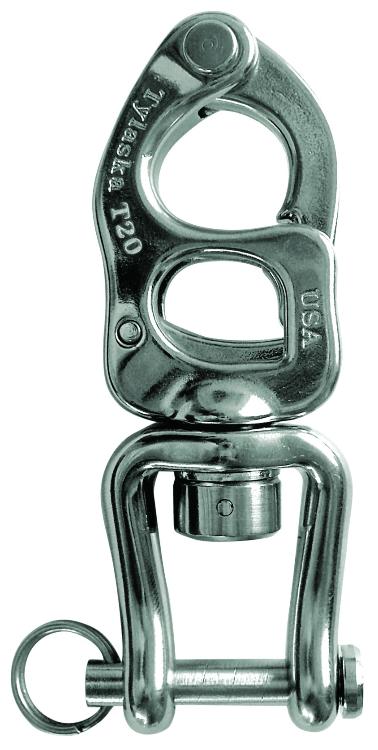

Tylaska 5 5/8" T20 Clevis Bail Snap Shackle

The T20 is a larger shackle designed for mid to large sized boats. They are popular on the America's Cup racing circuit. The T-20 has a breaking strength of 20,000 lbs. Standard bail configurations weigh only 11.9 oz. Ideal for 40 to 70 foot sailboats.

Specifications

Shackle Type: T20 Clevis Bail

Safe Working Load (lb.): 10,000 (4,540kg)

Breaking Strength (lb.): 20,000 (9,070kg)

Boat Size (ft.): 40' - 70'

Weight (oz.): 15.3 (434g)

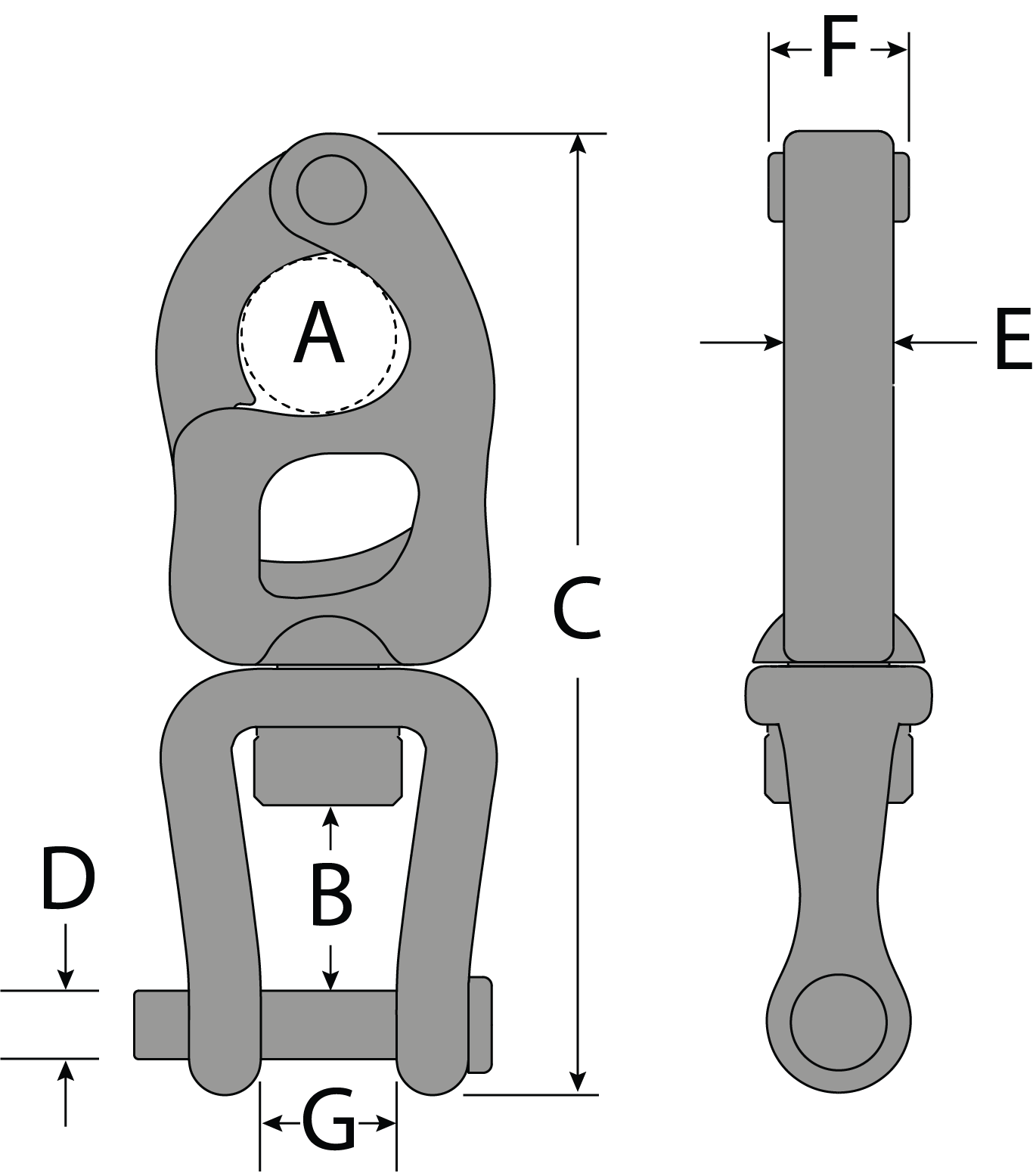

Dimensions:

A (in.): 0.99" (25.1mm)

B (in.): 1.13" (28.7mm)

C (in.): 5.60" (142.2mm)

D (in.): 0.44" (11.1mm)

E (in.): 0.55" (14mm)

F (in.): 0.75" (19mm)

G (in.): 0.80" (20.3mm)
