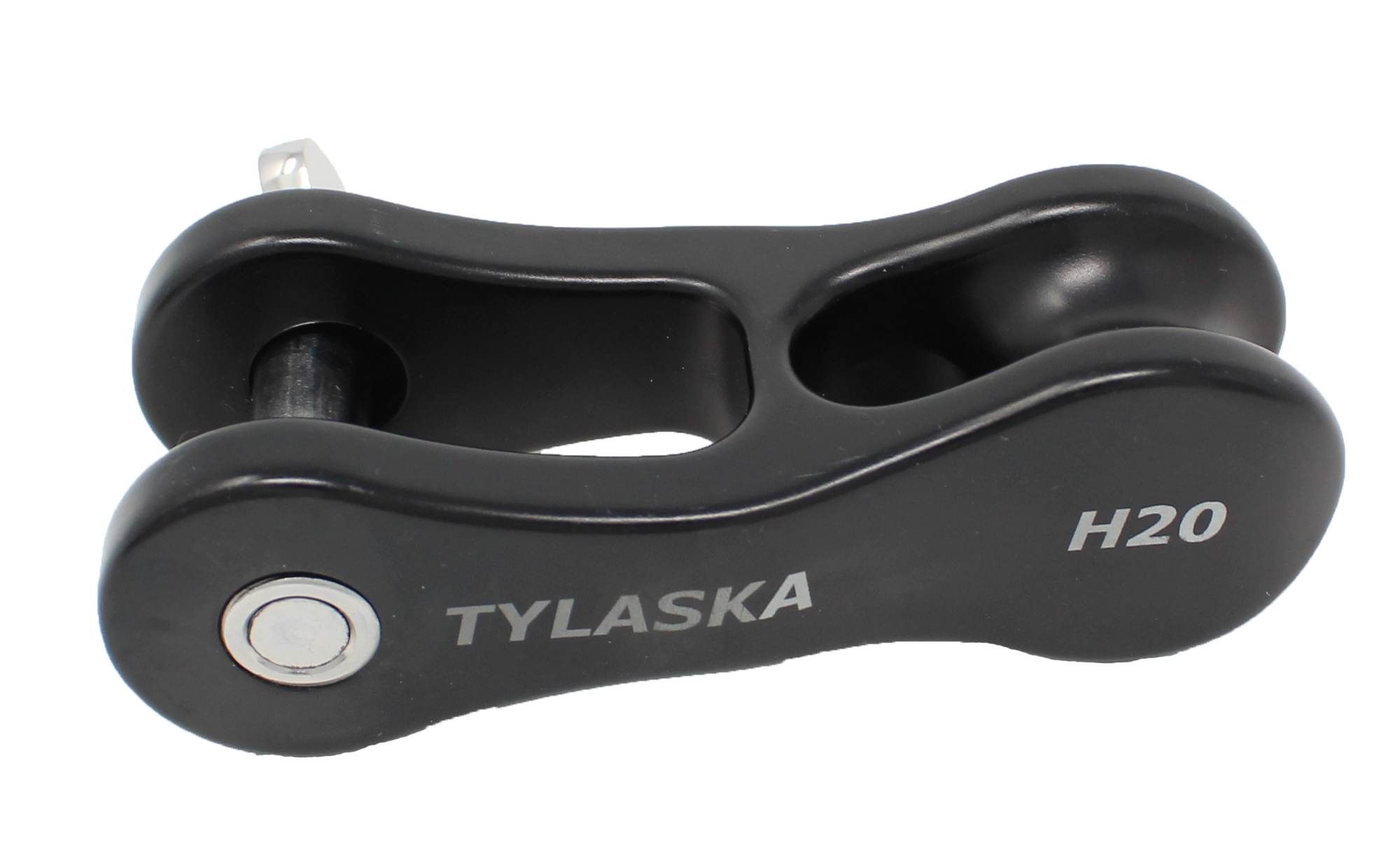

Tylaska 4.84" H20 Aluminum Halyard Shackle

Tylaska 4.84" H20 Aluminum Halyard Shackle

Tylaska’s halyard shackles are machined from aerospace grade aluminum plate and hard-coat anodized to military specifications for superior strength and durability. A captive 17-4PH stainless steel pin makes for trouble-free operation. The machined thimble surface is suitable for permanently spliced fixed halyards.

Specifications:

Shackle Type: H20

Safe Working Load (lb.): 10,000 (4,540kg)

Breaking Strength (lb.): 20,000 (9,070kg)

Line Size (in.): 1/2"-5/8" (12mm-16mm)

Weight (oz.): 10.5 (296g)

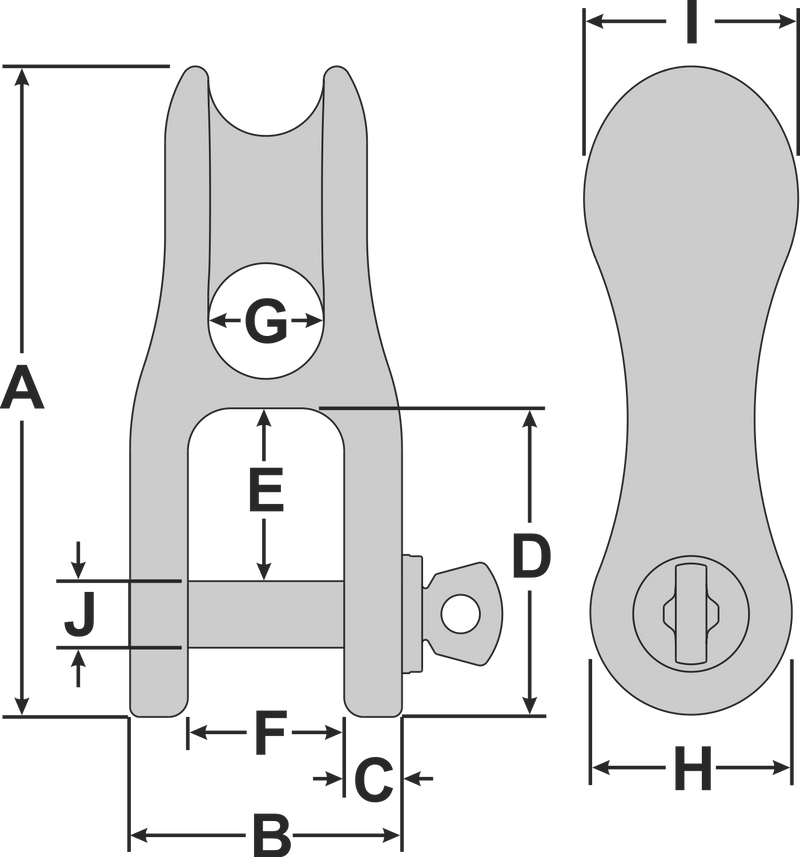

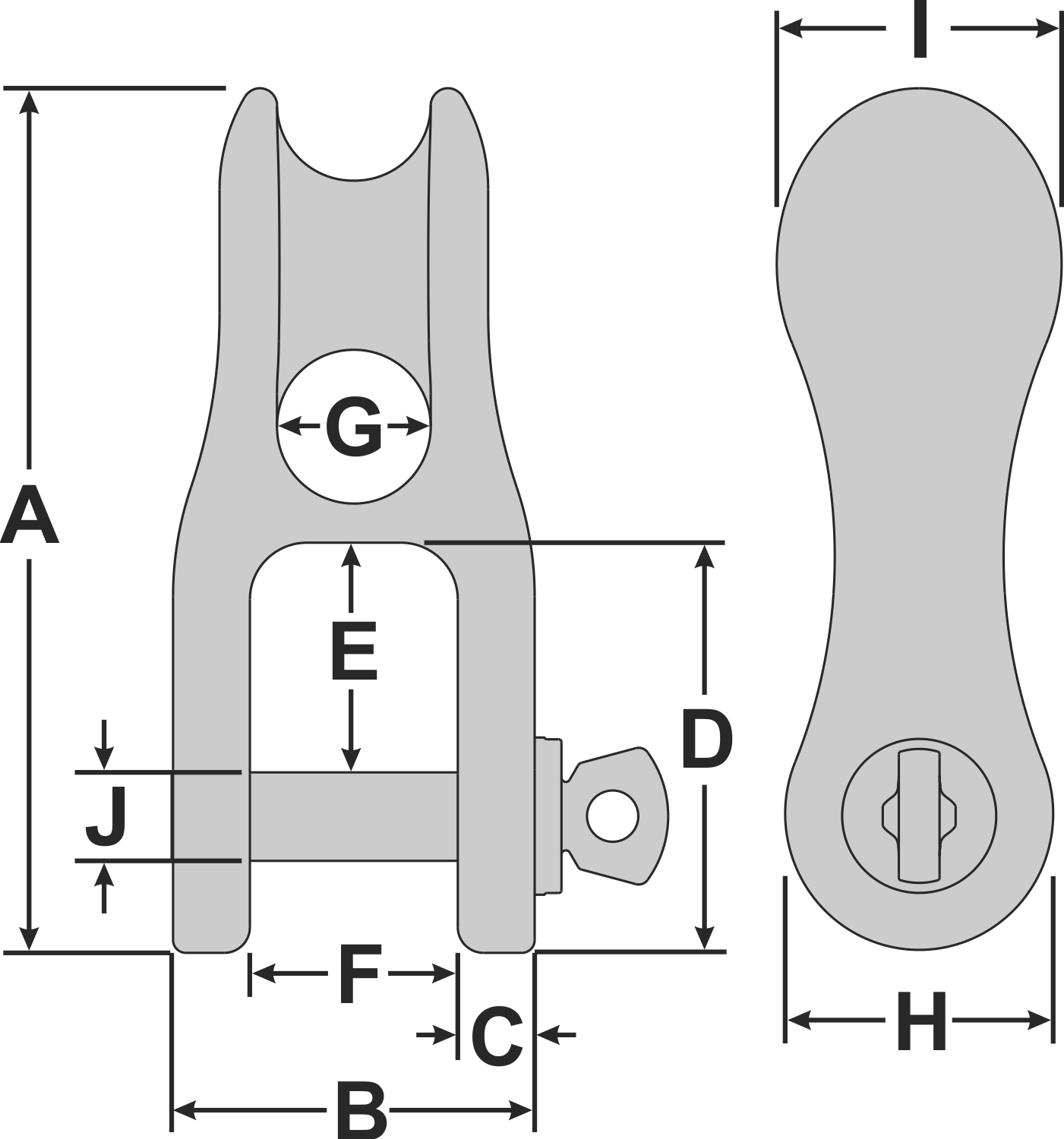

Dimensions:

A (in.): 4.84" (122.9mm)

B (in.): 1.84" (46.7mm)

C (in.): 0.42" (10.7mm)

D (in.): 2.50" (63.5mm)

E (in.): 1.50" (38.1mm)

F (in.): 1.00" (25.4mm)

G (in.): 0.75" (19mm)

H (in.): 1.50" (38.1mm)

I (in.): 1.58" (40.1mm)

J (in.): 0.50" (12.7mm)
