Product Description

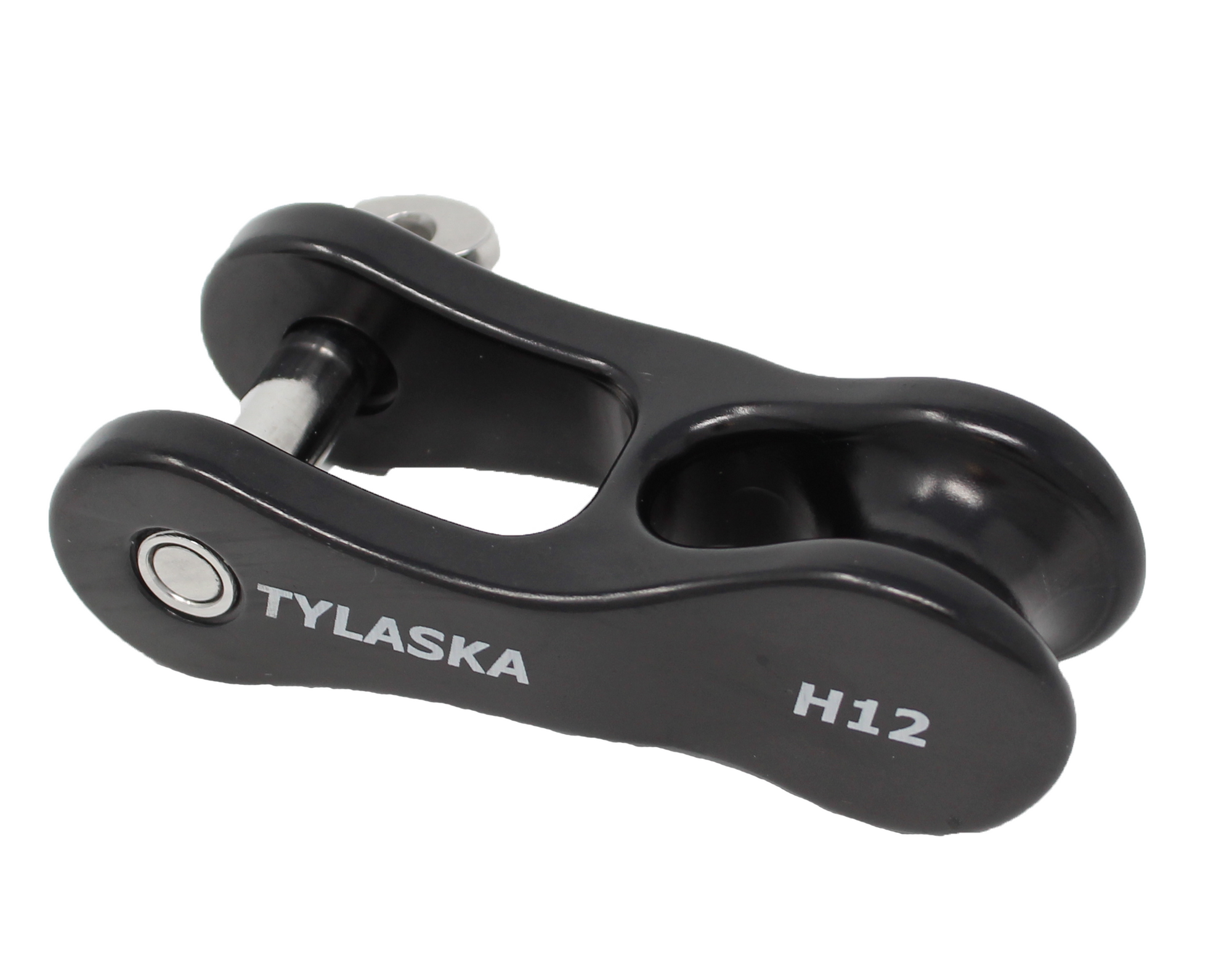

Tylaska 3.74" H12 Aluminum Halyard Shackle
Specifications:
Shackle Type: H12
Safe Working Load (lb.): 6,000 (2,720kg)
Breaking Strength (lb.): 12,000 (5,440kg)
Line Size (in.): 7/16"-9/16" (11mm-14mm)
Weight (oz.): 4.7 (132g)

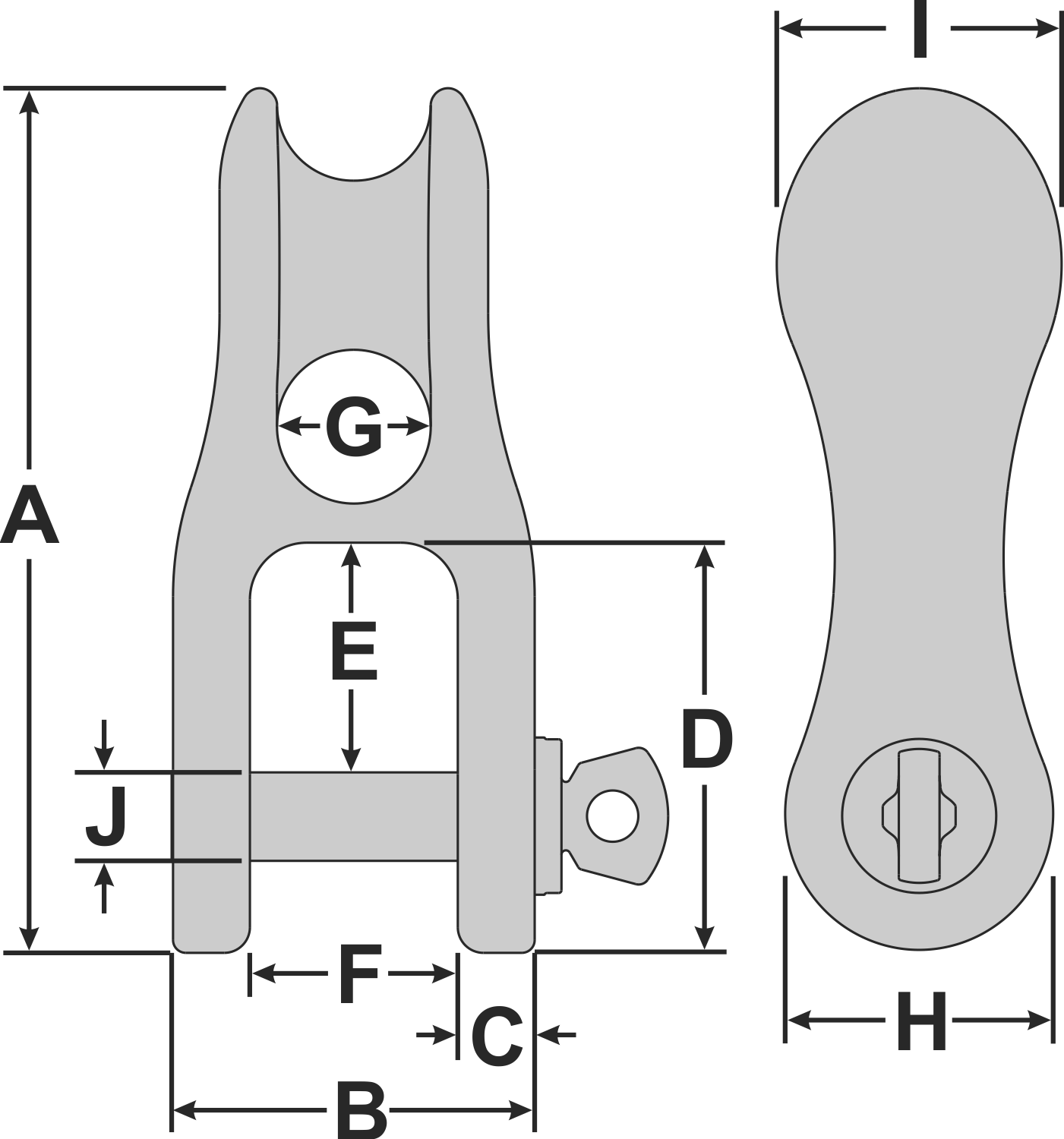

Dimensions:
A (in.): 3.74" (95mm)
B (in.): 1.50" (38.1mm)
C (in.): 0.31" (7.9mm)
D (in.): 1.90" (48.3mm)
E (in.): 1.14" (29mm)
F (in.): 0.88" (22.4mm)
G (in.): 0.63" (15.9mm)
H (in.): 1.12" (28.4mm)
I (in.): 1.21" (30.7mm)
J (in.): 0.38" (9.7mm)
