Product Description

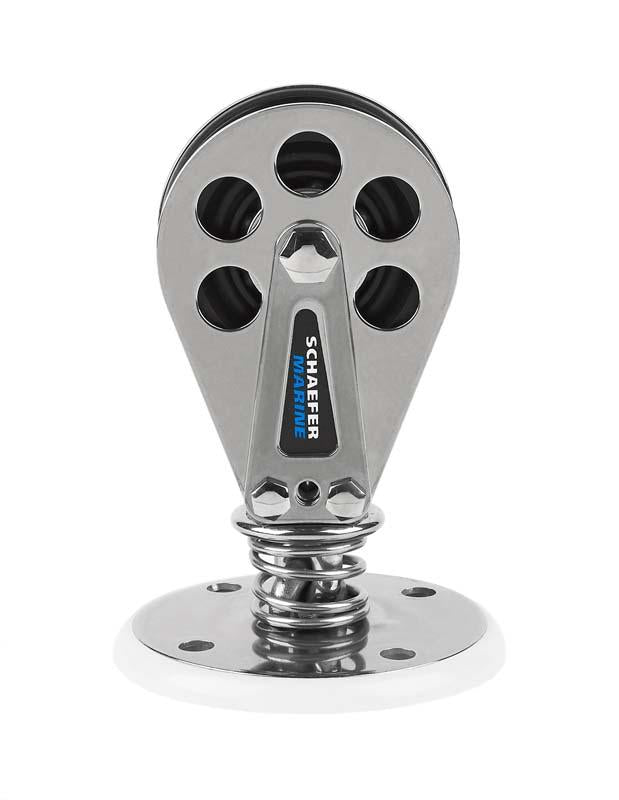

Schaefer UC Stand-Up Swivel Max Line 9/16" (14 mm)
8 Series Stand-up Block with Stainless Steel cheeks and Aluminum "universal circuit" ball bearing sheave. Aluminum sheave run on Delrin(tm) ball bearings for a very strong yet low-friction sheave. Bolted construction allows for easy maintenance.
Specifications:
Sheave Dia.: 2 3/8 in. (60 mm)
Max Line: 9/16 in. (14 mm)
Dia. includes urethane base: 3 3/8 in. (86 mm)
Height: 4 21/32 in. (118 mm)
L2: 2 15/32 in. (63 mm)
Fastener Size: (4),1/4 in. RH (6 mm)
C/C: 1 11/16 in. (43 mm)
SWL: 2750 lbs. (1250 kg)
Weight Stain.: 15.8 oz (448 g)
