Product Description

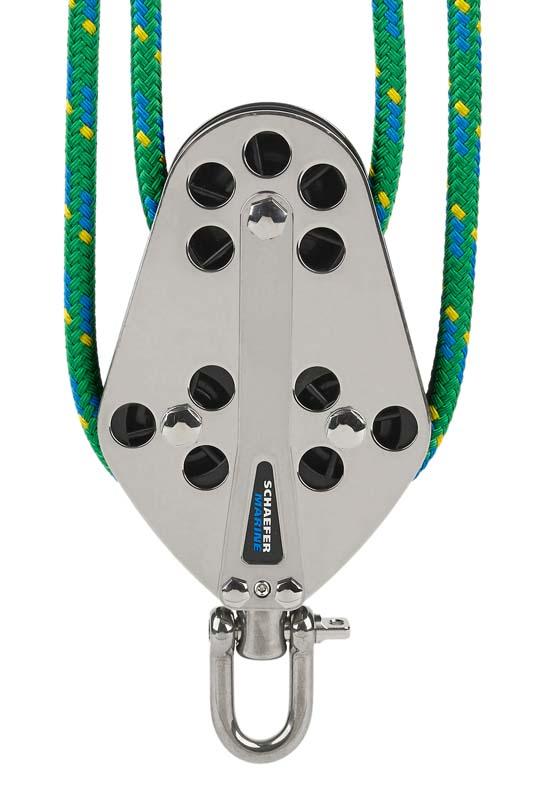

Schaefer S.S. Fiddle Block Max Line 9/16" (14mm)
8 Series Fiddle Block with Stainless Steel cheeks. Works with 23-55 or 08-55 for a 4:1 purchase. Delrin(tm) sheaves run on Nomex(tm)/Teflon(tm) bearings for low-friction and high safe working loads. Unique design features a single top sheave and two in-line sheaves to spread the load reducing friction and chafe. Stainless Steel D shackle run on a swivel head that may be locked in plate to avoid line twist. Bolted construction allows for easy maintenance.
Specifications:
Sheave Dia.: 2 3/8 in. (60 mm)
Sheave Width: 13/16 in. (21 mm)
Pin Dia.: 5/16 in. (8 mm)
Thickness: 1 3/32 in. (28 mm)
Width: 3 31/32 in. (101 mm)
Length: 8 1/8 in. (207 mm)
SWL: 2750 lbs. (1250 kg)
Weight: 1 lb. 7 oz. (652 g)
Max Line: 9/16 in. (14 mm)
