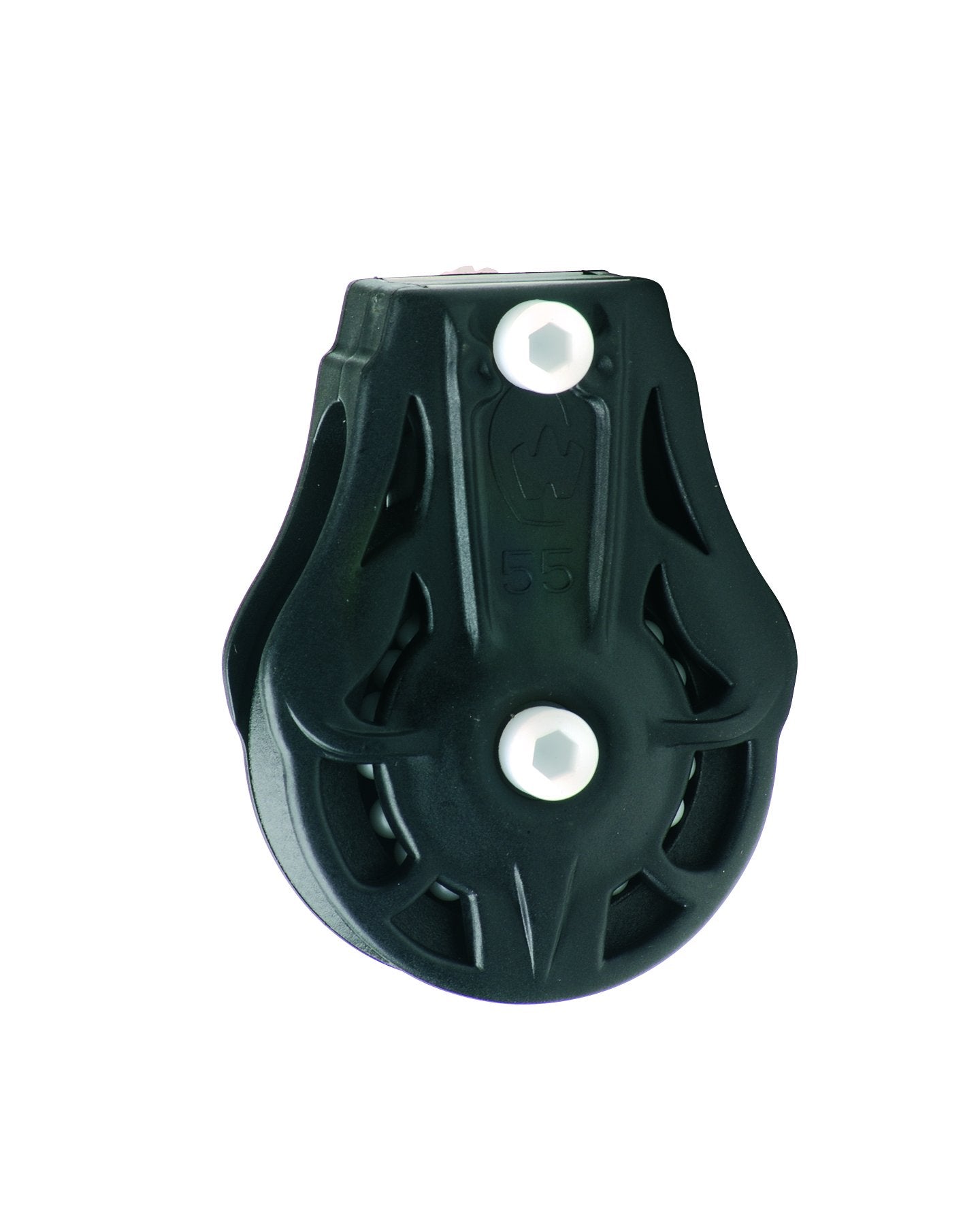

Wichard Single 2 11/64" (55mm) Ball Bearing Cheek Block

Item #

74120

Product Description

Wichard Single 2 11/64" (55mm) Ball Bearing Cheek Block

Features:

  • Weight: 4.7 oz. (134 g)

  • Sheave diameter: 2 11/64" (55mm)

  • Shackle Diameter: 1/4" (6mm)

  • Length: 3 3/16" (81mm)

  • Width: 2 31/64" (63mm)

  • Thickness: 1 1/64" (26mm)

  • Working load: 1587 Lbs (720 kg)

  • Breaking load: 3300 Lbs (1500 kg)

  • Rope Size: 13/32" (12mm)

  • Forged Shackle: 1/4" (6mm)

    Applications

  • Cheek blocks applications for genoa sheets...

    Material

  • Grade 316L stainless steel head configuration

  • Grade 316L stainless steel load straps

  • Polycarbonate flanges

  • Composite saddle for cam models

  • Delrin ball bearings

  • Composite sheave
