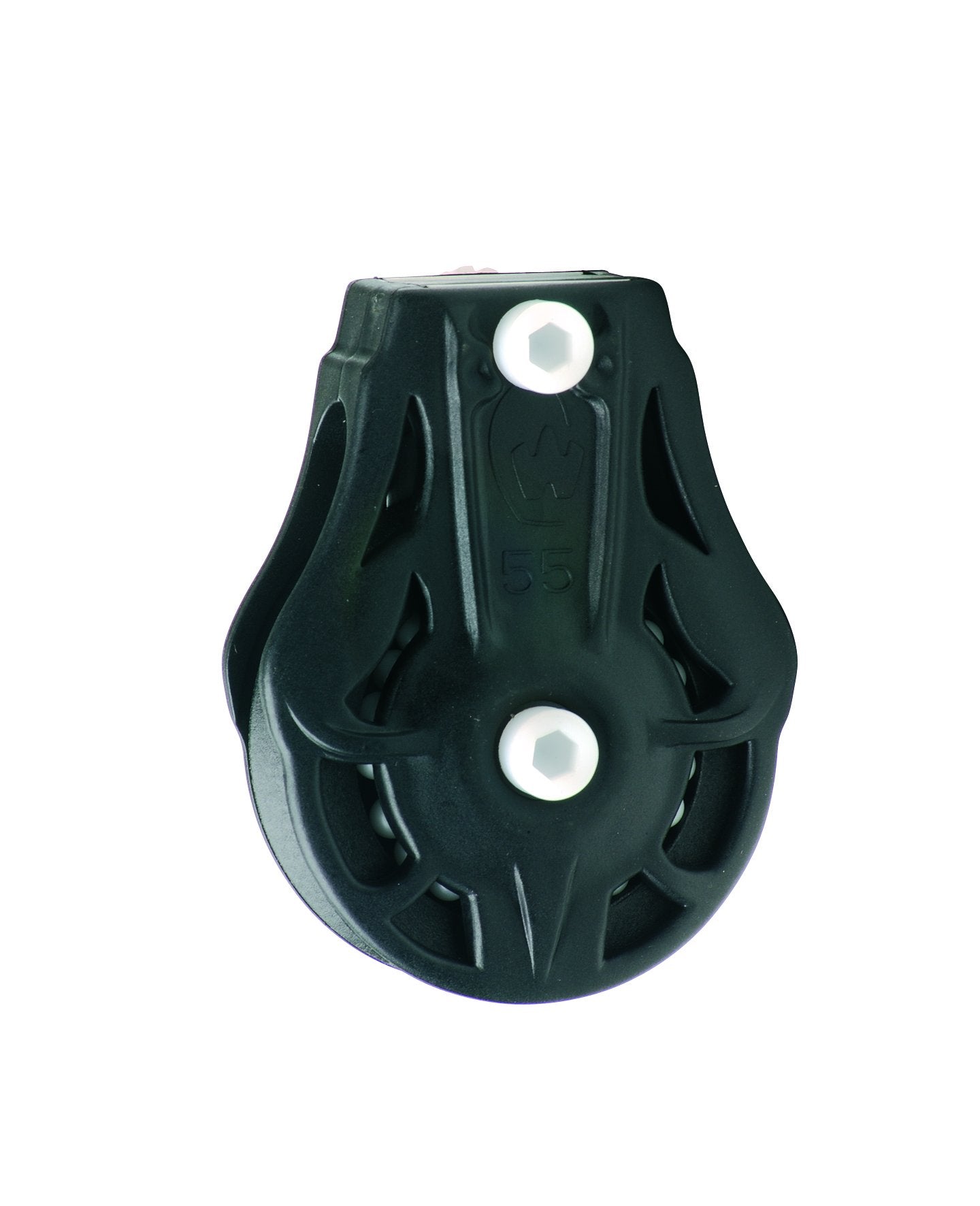

Wichard Single 1 49/64" (45mm) Ball Bearing Cheek Block

Item #

73120

Product Description

Wichard Single 1 49/64" (45mm) Ball Bearing Cheek Block

Features:

  • Weight: 2.7 oz. (76 g)

  • Sheave diameter: 1 49/64" (45mm)

  • Shackle Diameter: 13/64" (5mm)

  • Length: 2 9/16" (65mm)

  • Width: 1 15/16" (49mm)

  • Thickness: 29/32" (23mm)

  • Working load: 882 Lbs (400 kg)

  • Breaking load: 1980 Lbs (900 kg)

  • Rope Size: 13/32"-13/64" (10mm)

  • Forged Shackle: 13/64" (5mm)

    Applications

  • Cheek blocks applications for genoa sheets…

    Material

  • Grade 316L stainless steel head configuration

  • Grade 316L stainless steel load straps

  • Polycarbonate flanges

  • Composite saddle for cam models

  • Delrin ball bearings

  • Composite sheave
