Wichard 5/16" Diameter Bow Shackle w/ Captive Pin

Item #

1444

Product Description

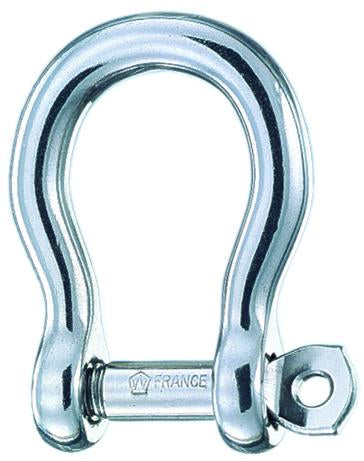

Wichard 5/16" Diameter Bow Shackle w/ Captive Pin

Features

  • Weight - 0.165 Lbs (75 g)

  • Working Load - 2205 Lbs (1000 kg)

  • Breaking Load - 6349 Lbs (3700 kg)

  • A - 1 29/64" (37mm)

  • B - 5/8" (16mm)

  • C - 11/32" (9mm)

  • Diameter - 5/16" (8mm)

    Description

  • Captive pin bow shackle forged in grade 316L stainless steel

  • The pin is connected to the body at all times even when opened

  • The pin is locked into one of the indentations

  • No risks of loose due to vibrations

  • Outstanding working and breaking loads

  • Single handed operation for more safety

    Applications

  • To be used when ample room is required

  • Possibility to attach several lines or cables

    Material

  • Grade 316L stainless steel
