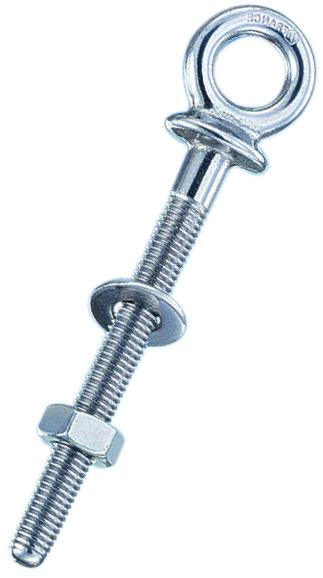

Wichard 4" Long Eye Bolt w/ 5/8" (10mm) Diameter

Item #

6495

Product Description

Wichard 4" Long Eye Bolt w/ 5/8" (10mm) Diameter

Features

  • Weight - 0.216 Lbs (98 g)

  • Working Load - 3527 Lbs (1600 kg)

  • Breaking Load - 5950 Lbs (2700 kg)

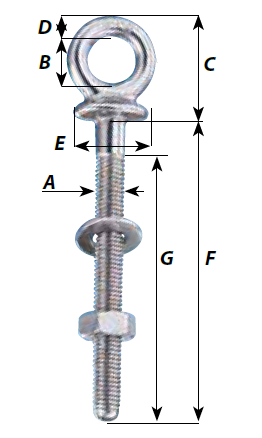

  • A - M10 x 150

  • B - 5/8" (16mm)

  • C - 1 27/64" (36mm)

  • D - 9/32" (7mm)

  • E - 64/64" (25mm)

  • F - 3 15/16" (100mm)

  • G - 3 29/64" (88mm)

    Description

  • A complete range of single piece forged products for fastenings applications

  • Outstanding working and breaking loads

  • Available in different sizes

  • Maximum tightening torque: 36Nm

    Applications

  • Various fastening applications

  • Towing application

  • Waterskiing lines attachment

    Material

  • Grade 316L stainless steel
