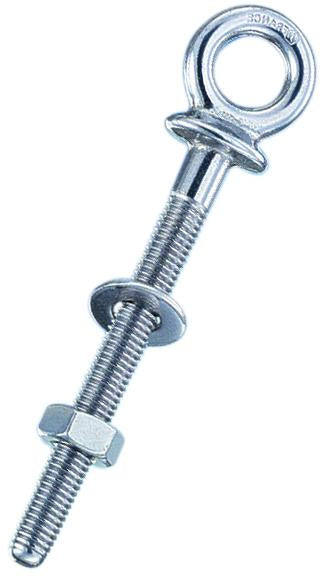

Wichard 3 5/32" Long Eye Bolt w/ 9/16" (8mm) Diameter

Item #

6492

Product Description

Wichard 3 5/32" Long Eye Bolt w/ 9/16" (8mm) Diameter

Features

  • Weight - 0.123 Lbs (56 g)

  • Working Load - 2116 Lbs (960 kg)

  • Breaking Load - 3300 Lbs (1500 kg)

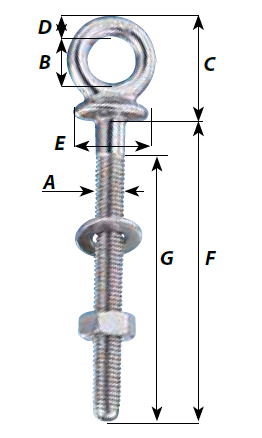

  • A - M8 x 125

  • B - 35/64" (14mm)

  • C - 1 3/16" (30mm)

  • D - 15/64" (6mm)

  • E - 51/64" (20mm)

  • F - 3 5/32" (80mm)

  • G - 2 49/64" (70mm)

    Description

  • A complete range of single piece forged products for fastenings applications

  • Outstanding working and breaking loads

  • Available in different sizes

  • Maximum tightening torque: 18Nm

    Applications

  • Various fastening applications

  • Towing application

  • Waterskiing lines attachment

    Material

  • Grade 316L stainless steel
