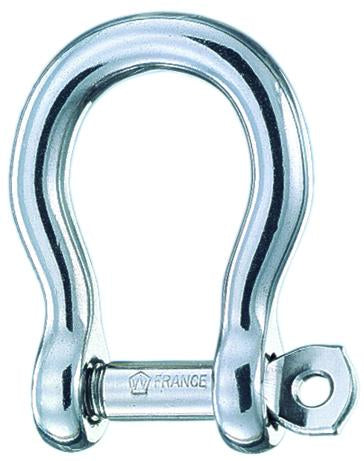

Wichard 1/4" Diameter Bow Shackle w/ Captive Pin

Item #

1443

Product Description

Wichard 1/4" Diameter Bow Shackle w/ Captive Pin

Features

  • Weight - 0.073 Lbs (33 g)

  • Working Load - 1323 Lbs (600 kg)

  • Breaking lLoad - 3880 Lbs (2200 kg)

  • A - 1 1/16" (27mm)

  • B - 15/32" (12mm)

  • C - 9/32" (7mm)

  • Diameter - 15/64" (6mm)

    Description

  • Captive pin bow shackle forged in grade 316L stainless steel

  • The pin is connected to the body at all times even when opened

  • The pin is locked into one of the indentations

  • No risks of loose due to vibrations

  • Outstanding working and breaking loads

  • Single handed operation for more safety

    Applications

  • To be used when ample room is required

  • Possibility to attach several lines or cables

    Material

  • Grade 316L stainless steel
