Product Description

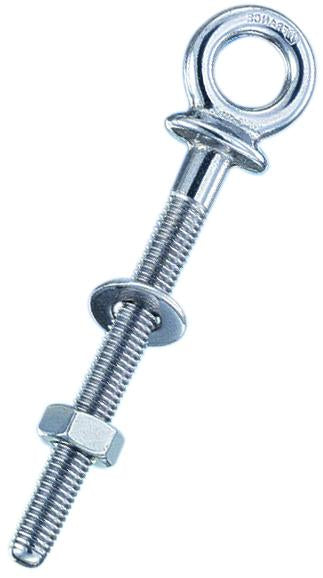

Wichard 1 9/16" Long Eye Bolt w/ 1/4" (6mm) Diameter
Features
Weight - 0.053 Lbs (24 g)
Working Load - 1235 Lbs (560 kg)
Breaking Load - 1980 Lbs (900 kg)

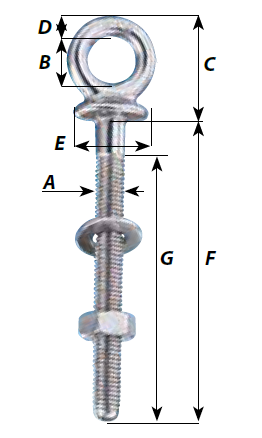

A - M6 x 100
B - 15/32" (12mm)
C - 63/64" (25mm)
D - 13/64" (5mm)
E - 43/64" (17mm)
F - 1 9/16" (40mm)
G - 1 11/32" (34mm)
Description
A complete range of single piece forged products for fastenings applications
Outstanding working and breaking loads
Available in different sizes
Applications
Various fastening applications
Towing application
Waterskiing lines attachment
Material
Grade 316L stainless steel
