Tylaska 9 3/16" T40 Large/Large Bail Swivel

Item #

TY1240-LL

Product Description

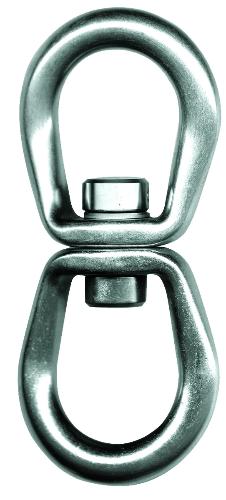

Tylaska 9 3/16" T40 Large/Large Bail Swivel

Large Bails provide room for up to three additional shackles or a combination of shackles and lines. Ideal for spinnaker sheets, guys or other multi-line applications.

Specifications

Shackle Type - T40 Large/Large Bail Swivel

  • Safe Working Load - 20,000 (9,091 kg)

  • Breaking Strength - 40,000 (18,182 kg)

  • Weight - 71.8 oz. (2,039 gm)

    Dimensions

  • A - 2 17/32" (64.3 mm)

  • B - 2 17/32" (64.3 mm)

  • C - 2 15/32" (62.7 mm)

  • D - 2 17/32" (64.3 mm)

  • E - 9 3/16" (233 mm)
