Tylaska 7 3/16" T30 Large Bail Snap Shackle

Item #

TY1030-L

Usually ships within 1-3 days

Product Description

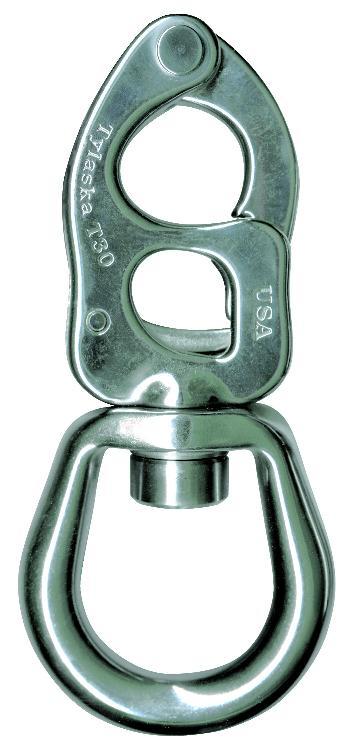

Tylaska 7 3/16" T30 Large Bail Snap Shackle

Tylaska T30 is designed for large sailboats that need to support strong loads. With a breaking strength of 30,000 pounds, this shackle can handle sail loads on the largest of sailboats. A number of around-the-world racing teams utilize the T30.

Specifications:

Shackle Type: T30 Large Bail

Safe Working Load (lb.): 15,000 (6,800kg)

Breaking Strength (lb.): 30,000 (13,610kg)

Boat Size (ft.): 60'+

Weight (oz.): 34.9 (989g)

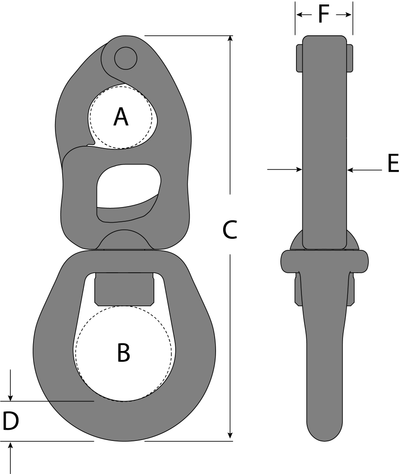

Dimensions:

A (in.): 1.23" (31.2mm)

B (in.): 1.76" (44.8mm)

C (in.): 7.31" (185.7mm)

D (in.): 0.74" (18.8mm)

E (in.): 0.77" (19.6mm)

F (in.): 0.97" (24.7mm)
