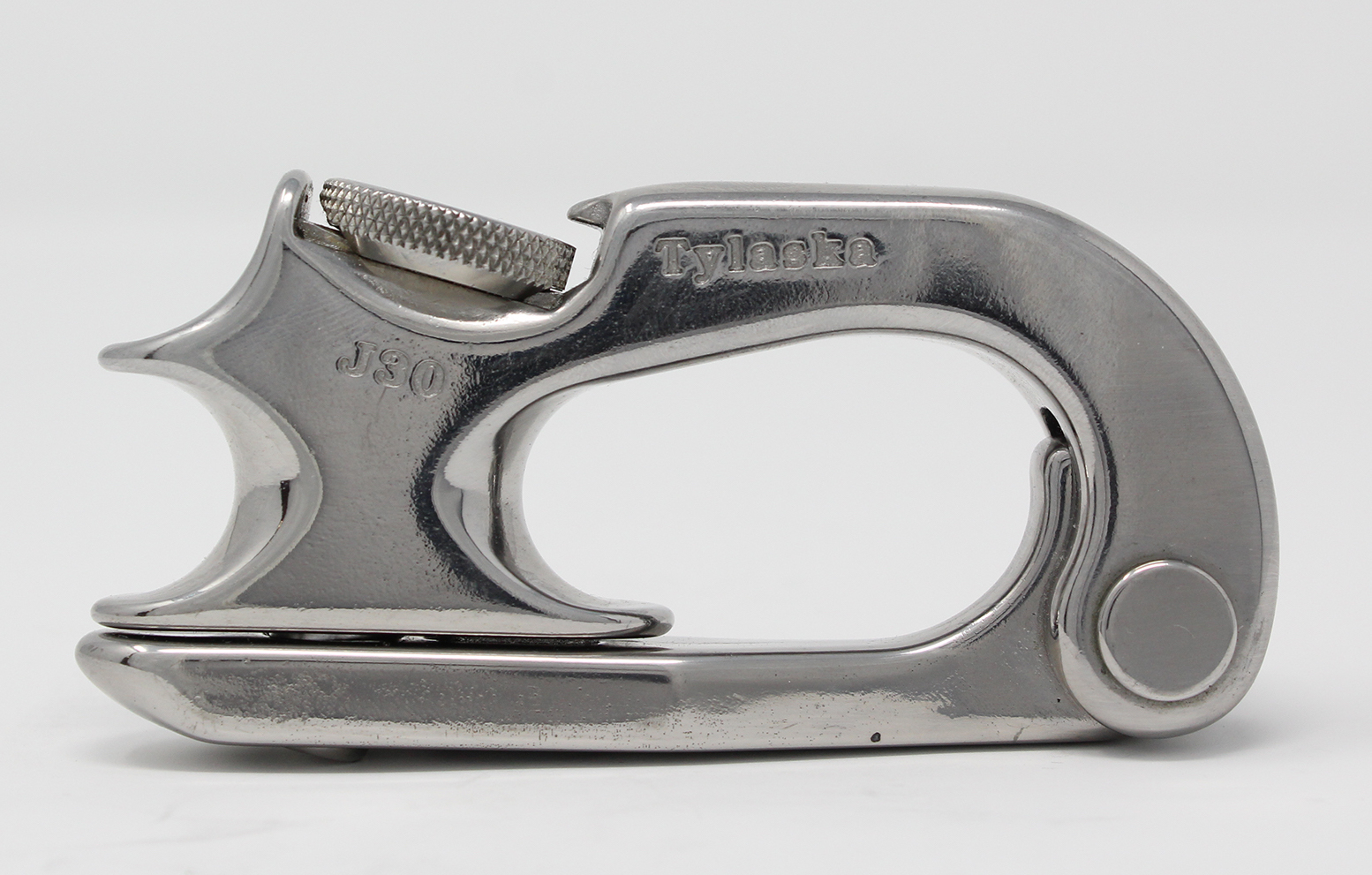

Tylaska 4.06" J30 J-Lock Shackle

Item #

TY1330

Usually ships within 1-3 days

Product Description

Tylaska 4.06" J30 J-Lock Shackle

Easily spliced onto Genoa sheets, outhauls and halyards, the low-profile Tylaska J-Locks fit through most Genoa blocks for fast sheet changes. The unique patented double-locking plunger locks in two directions to provide the ultimate protection against accidental opening during flogging.

  • Easy to use working mechanism

  • Heat treated 17-4 PH stainless steel

  • Specifications

  • J Lock Type - J30

  • Safe Working Load(lb.) - 15,000 (6,804kg)

  • Breaking Strength(lb.) - 30,000 (13,608kg)

  • Line Size(mm) - 9/16" - 3/4" (14mm-20mm)

  • Weight(oz.) - 14.2 (403g)

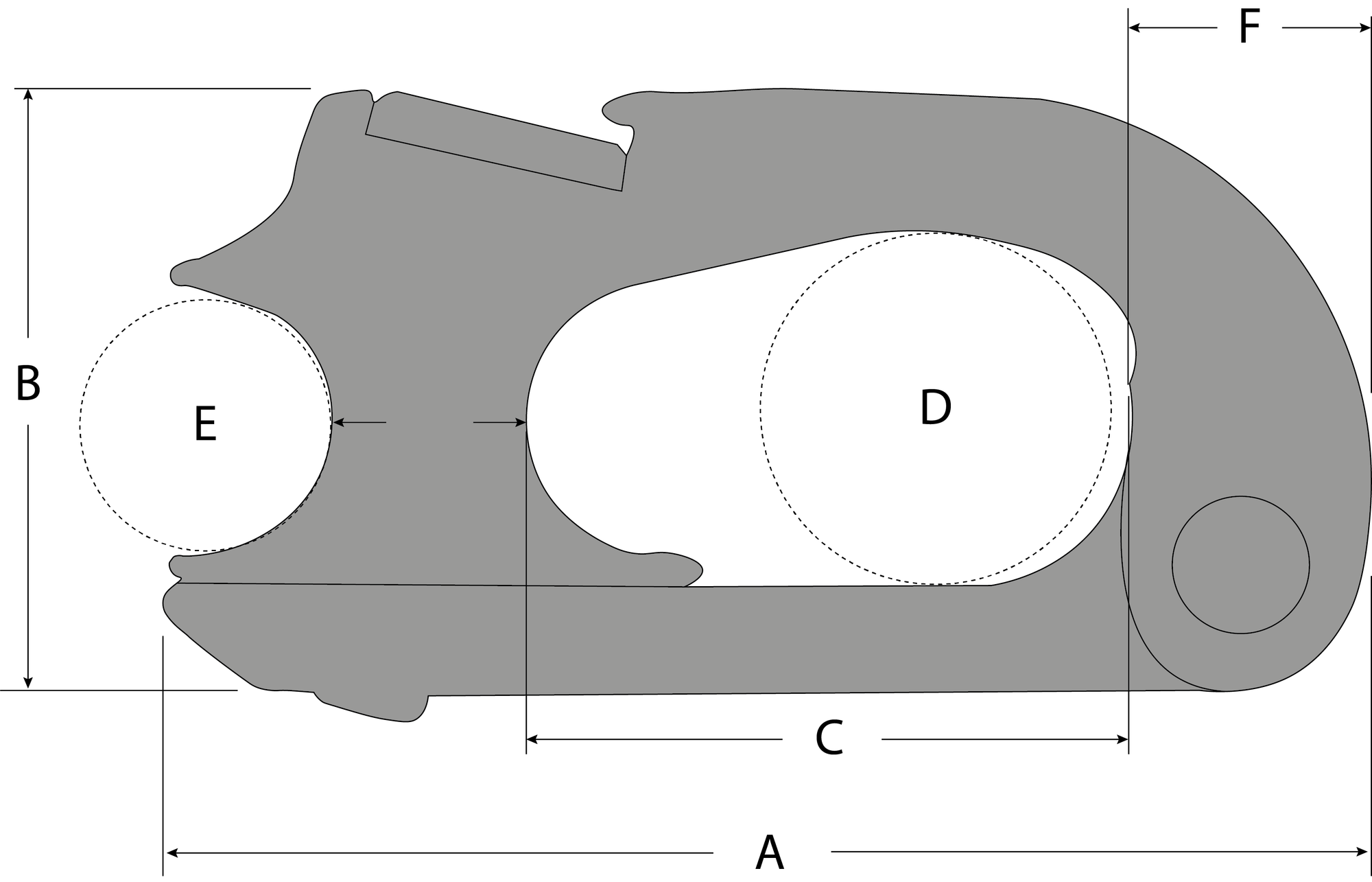

    Dimensions

  • A(in.) - 4.06" (103.1mm)

  • B(in.) - 1.94" (49.3mm)

  • C(in.) - 1.78" (45.2mm)

  • D(in.) - 1.04" (26.4mm)

  • E(in.) - 0.75" (19mm)

  • F(in.) - 0.80" (20.3mm)

  • Thickness(in.) - 0.98" (24.9mm)
  •
