Product Description

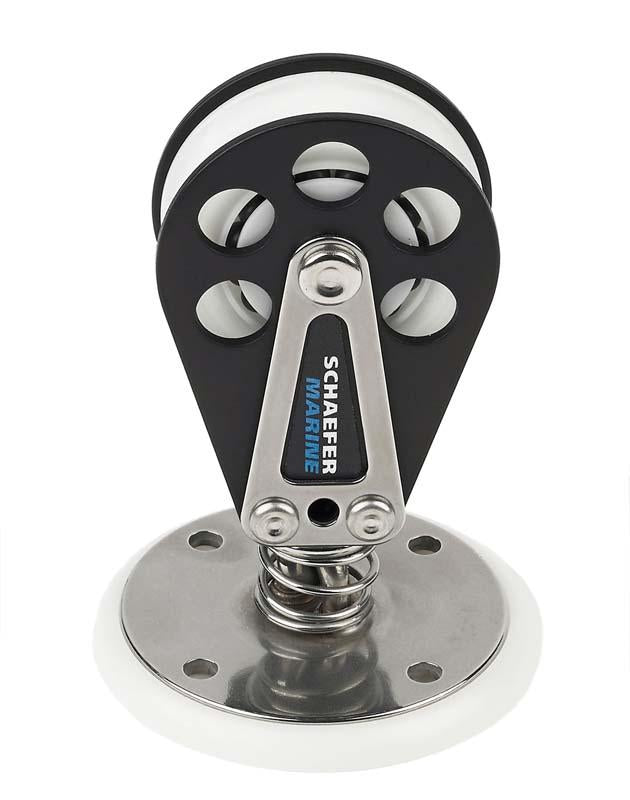

Schaefer Ball Bearing Stand-Up Swivel Block
Stand up swivel block with aluminum cheeks and ball bearing sheave. Delrin(tm) ball bearing sheave ensures low-friction. Backing plate ordered separately # 97-48.
Specifications:
Sheave Dia.: 2 in. (51 mm)
Max Line: 7/16 in. (11 mm)
Dia. includes urethane base: 2 7/8 in. (73 mm)
Height: 4 1/32 in. (103 mm)
H2: 2 3/32 in. (54 mm)
Fastener Size: (4), #10 RH (5 mm)
C/C: 1 13/32 in. (36 mm)
SWL 1750 lbs. (790 kg)
Weight Alum.: 7.0 oz. (332 g)
