Ronstan Series 75 Single Ratchet Block

Item #

RF72100

Usually ships within 1-3 days

Product Description

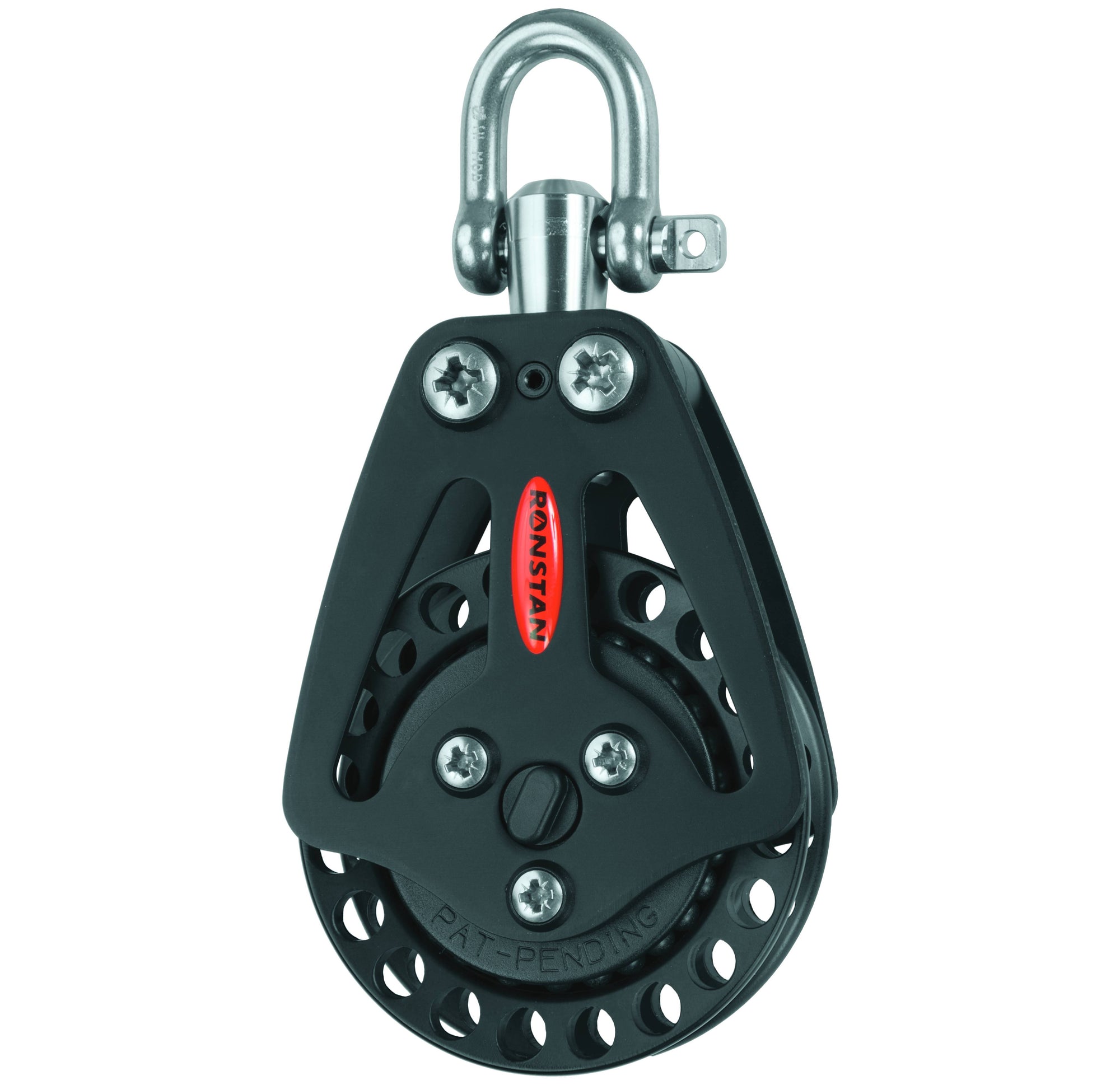

Ronstan Series 75 Single Ratchet Block

Product Information

The patented extruded hole design, in conjunction with the groove profile of the sheave, provides a more powerful grip than conventional designs - up to 20:1 holding power. Unrivalled low weight is achieved by the use of a Torlon® ratchet pawl, high grade machined alloy sheave and black Acetal hubs and bearings. On-Off switching knob is fitted to both sides of the swivel blocks (one can be removed if desired). Ratchet blocks can be disassembled for servicing or customization.

Features

  • Unrivaled 20:1 holding power

  • Dual sided On-Off switch

  • Ability to operate On/Off switch under load

  • Low friction ball bearing system

  • Lightweight

  • Cheek cut-outs for easy bearing maintenance

    Specifications:

  • Sheave Ø: 3 in. (75mm)

  • Max. Rope Ø: 1/2 in. (12mm)

  • Max. Cable Ø: - in (mm)

  • Pin Ø: 9/32 in. (7mm)

  • M.W.L.: 930 lb. (420 kg)

  • B. L.: 4400 lb. (2000 kg)

  • Weight: 5.7 oz. (162 g)

    Applications

  • Mainsheet on powerful dinghies and skiffs

  • Series 60 mainsheet systems on sportsboats using RF7 mainsheet swivel units

  • Control line applications on larger yachts

  • Spinnaker sheets on sportsboats and small keel boats (lateral lead blocks)

    Materials

  • Carbon black Acetal ball bearings

  • Anodised aluminium sheave and cheek plates

  • Torlon® ratchet pawl

  • Grade 316 stainless steel forged shackle
