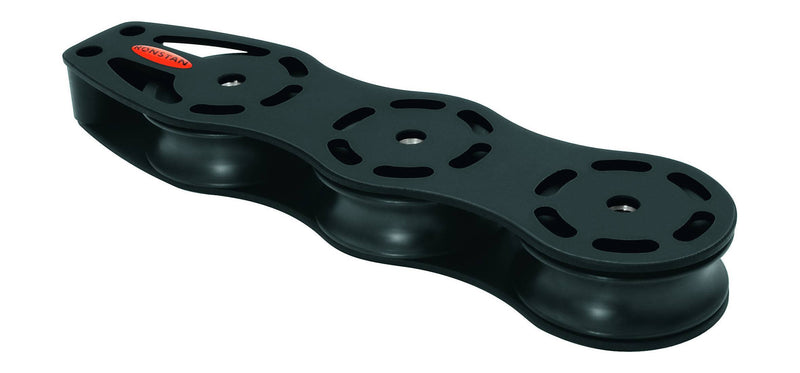

Ronstan Series 60 3 Sheave Organizer

Item #

RF61831

Usually ships within 1-3 days

Product Description

Ronstan Series 60 3 Sheave Organizer

Features

  • Lightweight design with cheek cut outs for easy bearing maintenance

  • Through hub mounting for maximum strength

  • All-purpose bearing system provides maximum static load capacity

    Sheave Ø - 2 3/8 in.

    Max. Rope Ø - 9/16 in.

    Max. Cable Ø - in

    Fastener Ø - 5/16 in.

    M.W.L. - 2200 lb.

    B. L. - 4410 lb.

    Weight - 13.8 oz.

    Product Information

    Deck organizers are an effective means of deflecting halyards and other control lines to winches, stoppers and cleats. Sheaves are made from impact resistant Acetal. The deck organizers have black chromed cheeks, flared at rope entry and exit points to minimize chafing. All sizes can be stacked to create double versions - MWL of the top sheaves must not exceed 50% of the total block load rating.

    Applications

  • Line deflection on larger yachts (depending on load and angle of deflection)

  • Halyard and control line deflection on boats to 14m (46ft)

    Materials

  • Alloy upper and lower cheek plates

  • U.V. stabilized Acetal sheaves

  • Grade 316 stainless steel hubs
