Product Description

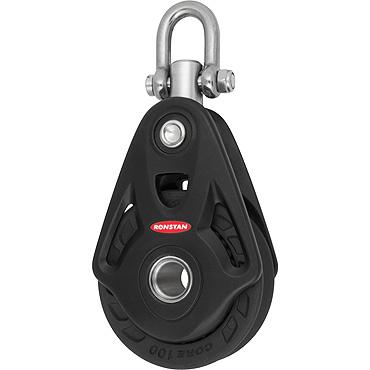

Ronstan 100mm Single Core Block
Features
High dynamic and static load capacity
High load bearing system
Ball bearings to counteract side thrust loads
Class leading performance and sleek, contemporary styling
Durable aluminium alloy cheek plates
Central hub hole can be used as a becket take-off or tie-up point
Also available in Series 45, 60 & 75
Universal head with full 3-axis articulation
Head posts can be locked at 0 or 90 degrees, by using a 2.5mm Hex/Allen Key
Alloy Rope/Wire sheave version also available
Central hub hole can be used as a becket take-off or tie-up point
Specifications:
Sheave Ø - 4 in. (100mm)
Max. Rope Ø - 3/4 in. (18mm)
Max. Cable Ø - in (mm)
Pin Ø - 3/8 in. (10mm)
M.W.L. - 7150 lb. (3250 kg)
B. L. - 16500 lb. (7500 kg)
Weight - 31.8 oz. (900 g)
Applications:
Ideal for mainsheet, spinnaker sheet, vang, halyard and backstay applications on boats to 16m (53ft).
General applications on larger yachts.
Materials:
Bearings: High compression strength, self-lubricating acetal
Head post: Grade 2205 stainless steel
Shackles: Grade 17-4PH stainless steel
Padeye: Grade 15-5PH stainless steel
Other fixtures: Grade 316 stainless steel
Shackle, post & hub: Grade 316 stainless steel.
