Plastimo Contest 101 Tactical Compass

Item #

64425

Color
Black
Cover

Product Description

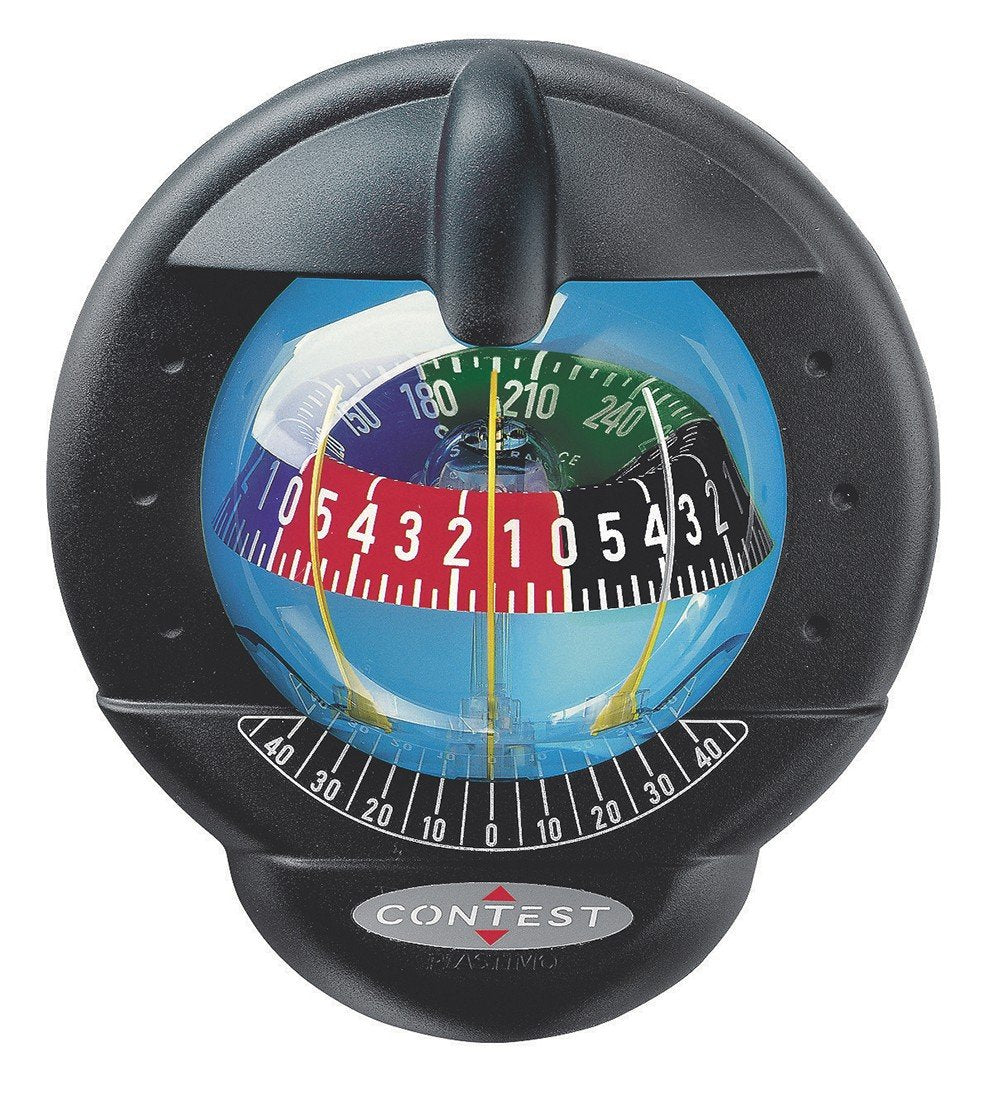

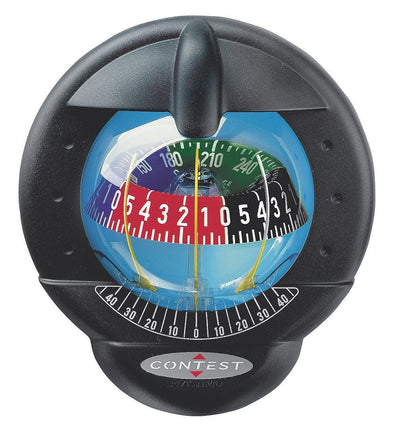

Plastimo Contest 101 Tactical Compass

Dinghy, catamarans and sportboats 8 to 12 m (26 to 40 ft).

The racing version of the legendary Contest 101, with a tactical card.

Combines the functions of :

  • Main steering compass, from card horizontal surface. Course is read from the lubber lines mounted in the lower part of the bowl

  • Tactical compass, from card vertical section (direct reading). Tactician-crew only needs to memorize one figure for the 3 legs of an Olympic course.

    UNIVERSAL BALANCE : around the world with one single compass.

    Assembly is totally watertight

    • Exclusive installation design allows the compass to fit any bulkhead, vertical or inclined up to 25° front tilt.

    • Fits any bulkhead thickness :

    • Regular bulkhead thickness (up to 40 mm) : compass is secured with threaded rods.

    • Thick or double bulkhead : compass is secured with screws on both sides of the bulkhead.

    Materials

    • All parts fully UV-ray treated.

    • Scratch resistant dome.

    • Boat size: Sailboats and racing dinghies 8 m and above (26 ft +)

    • Double reading: From cockpit and cabin.

    • Compass card

    - Double graduation : horizontal and vertical.

    - Tactical conical card, graduated every 5°, apparent Ø 100 mm.

    • Mounting: Comes as standard in a bulkhead version.

    • Can be mast-mounted with the addition of optional mast-mounting kit.

    • Lubber lines: 3 lubber lines, at 45°.

    • Heelmeter: Graduated every 10°.

    • Compensation: Optional.

    • Lighting: 12-24 V LED.

    • Supplied with: Protection cover, drilling template, back flange for neat installation from cabin side

    • Homologation: ISO 25862 compliant
