Plastimo Contest 101 Compass

Item #

64416

Color
Black with Red Card
Black with Black Card
White with Red Card
White with White Card

Product Description

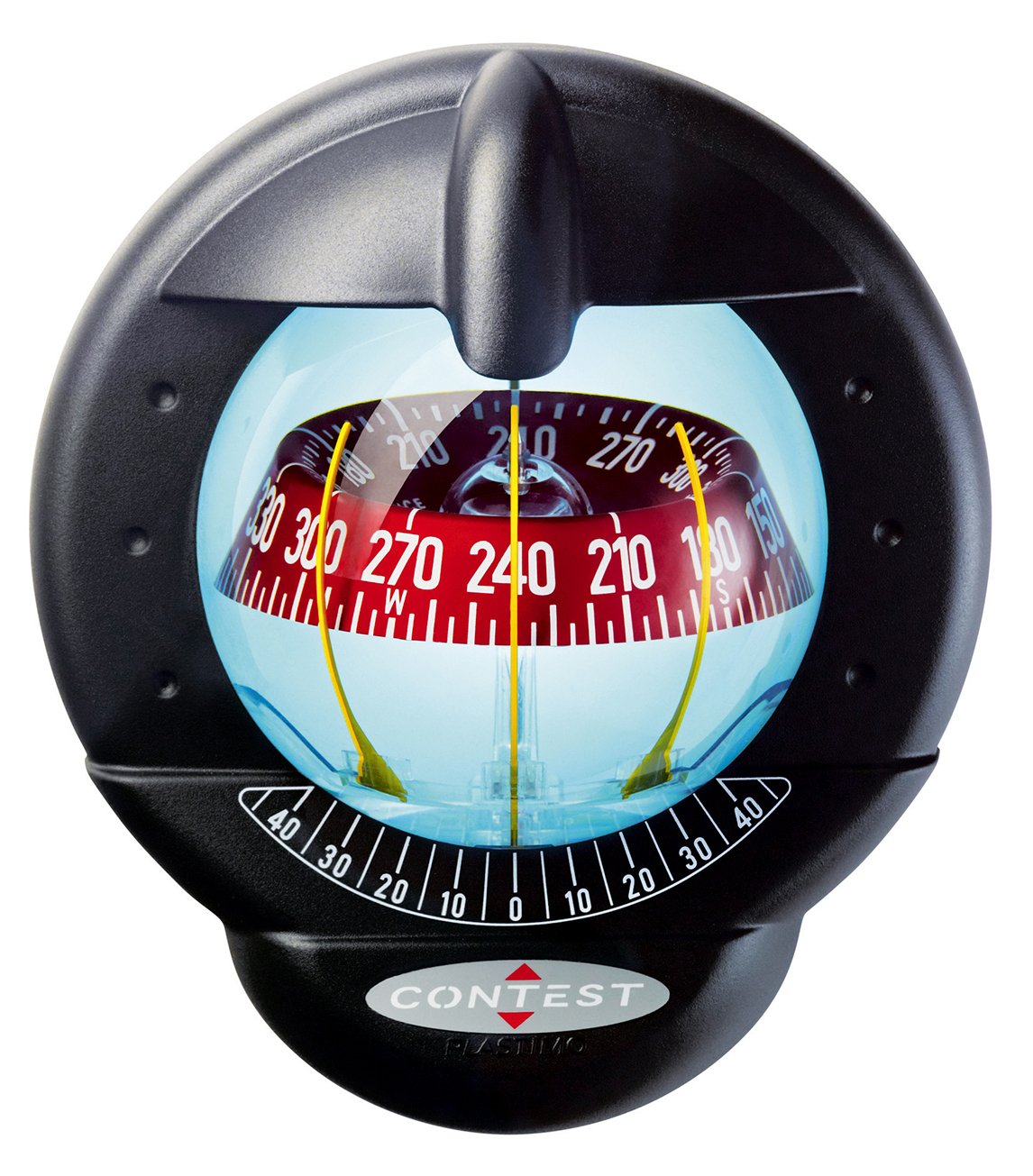

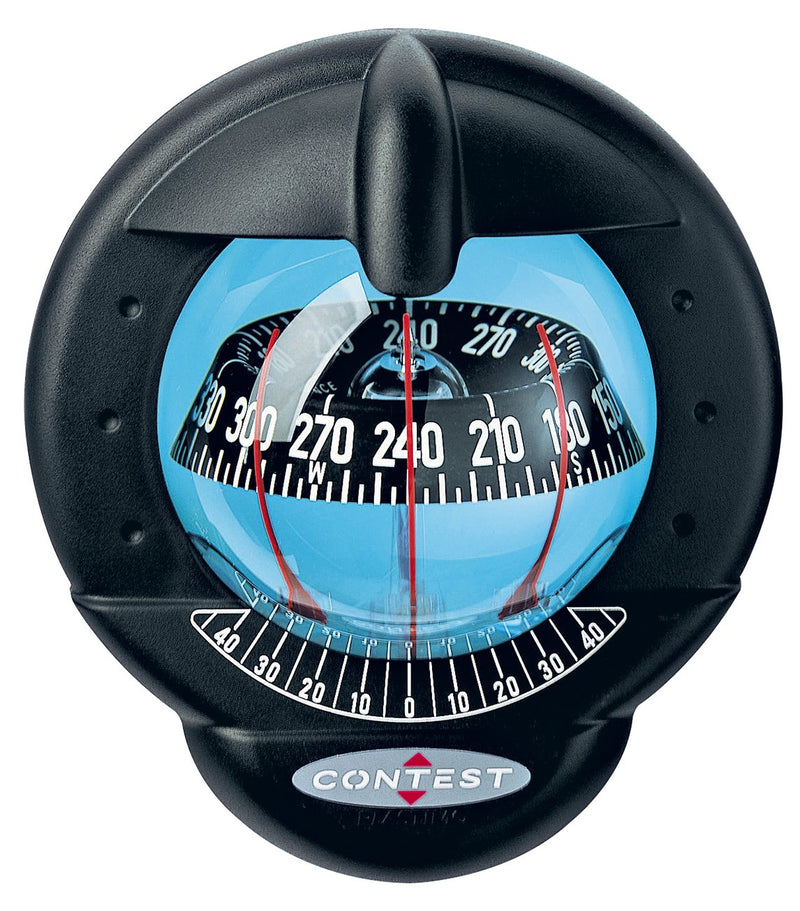

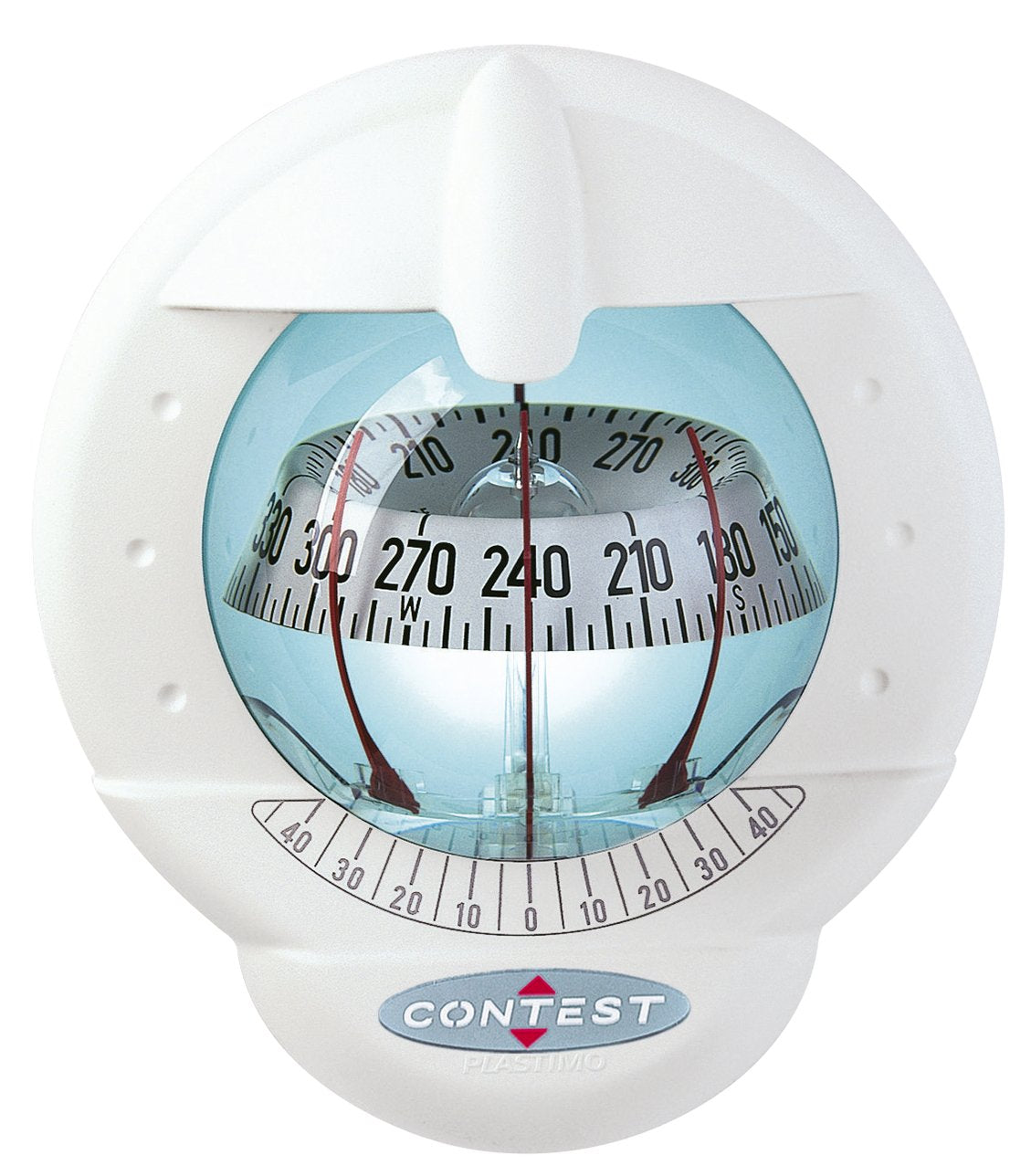

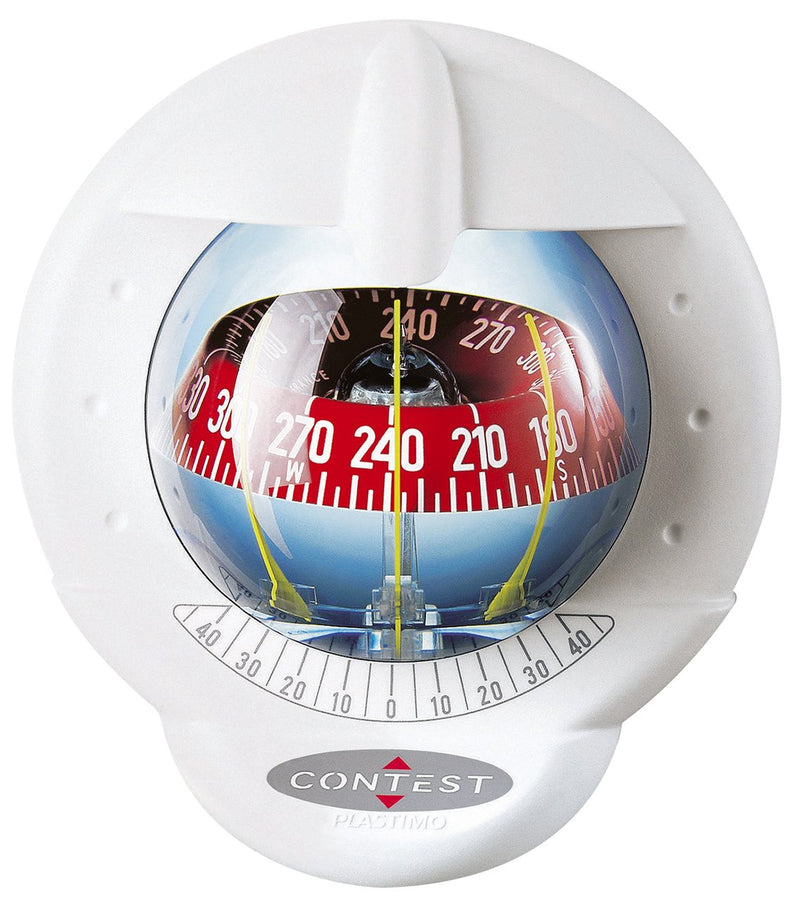

Plastimo Contest 101 Compass

Sailboats 9 m and above (30 ft +).

The No. 1 sailboat compass worldwide : Double reading, Large crisp card and Great looks in cockpit.

The Contest 101 is the benchmark-compass in the Plastimo range : millions of yachtsmen worldwide keep on the right course with their Contest compass.

Its exclusive mounting possibilities allow installation on all bulkheads, whatever the thickness.

• Double reading : from cockpit and cabin sides.

• Card : vertical and horizontal graduation so that course reading is equally easy, no matter whether you steer sitting or standing.

• 3 lubber lines for dependable readings even when steering windward

• Double reading : invented by Plastimo and still the favorite of millions of yachtsmen who appreciate to follow the course at all times, both from cockpit and cabin sides.

Features

Assembly is totally watertight

• Exclusive installation design allows the compass to fit any bulkhead, vertical or inclined up to 25° front tilt.

• Fits any bulkhead thickness :

- Regular bulkhead thickness (up to 40 mm) : compass is secured with threaded rods.

- Thick or double bulkhead : compass is secured with screws on both sides of the bulkhead.

Materials

• All parts fully UV-ray treated.

• Scratch resistant dome.

• Boat size: Sailboats 9 m and above (30 ft +)

• Double reading: From cockpit and cabin.

• Compass card:

- Double graduation : horizontal and vertical.

- Conical card, graduated every 5°, apparent Ø 100 mm.

- Heading numerals every 30°.

• Mounting

- Comes as standard in a bulkhead version (vertical or 10-25° inclined bulkhead).

- Can be mast-mounted with the addition of optional mast-mounting kit.

• Lubber lines: 3 lubber lines, at 45°.

• Heelmeter: Graduated every 10°.

• Compensation: Optional.

• Lighting: 12-24 V LED

• Supplied with:

- Protection cover, drilling template, back flange for neat installation from cabin side

• Homologation: ISO 25862 compliant
