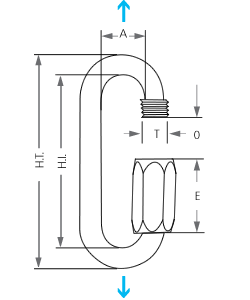

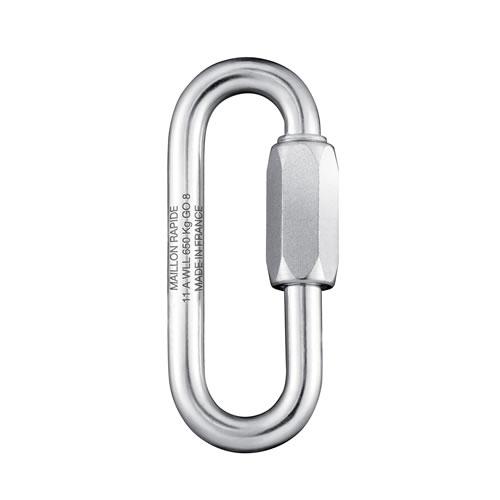

Peguet 7mm (9/32") Stainless Steel Large Opening Maillon Rapide Quick Link
Large Opening: an alternative to the Standard shape with identical purpose, for easier connection of wider parts.Specifications:
Diameter: 7MM or 9/32"
Weight: 62g (0.1367 lbs)
Working Load: 800kg (1763 lbs)
Breaking Load: 4000kg (8818 lbs)
316L Stainless Steel
Rod: Standard X2 Cr Ni, Mo 17-12-2 (1.4404), AISI 316L
Nut: Standard X2 Cr Ni, Idem, Idem
Rod: Molybdenum type 18/12 steel with a very low carbon content, protects against the risk of intergranular corrosion.
Nut: Can be used in environments where type 18.10 steels reside, with the exception of media combining nitric acid.
Molybdenum content equal to 2: 2.5 favoring jobs in areas larger than those provided for type 18.10 steels, particularly in the presence of sulfuric acid and chloride in the marine environment. (rod & nut).
ط F 2,5 3,0 3,5 4,0 5,0 6,0 7,0 8,0 9,0 10,0 12,0 14,0 16,0 18,0 20,0
Torque 0,15 0,30 0,60 0,70 0,80 1,20 2,50 3,00 4,50 7,00 9,00 12,00 18,00 30,00 40,00
Keep to the working load limit WLL engraved in kg.
Visual check of complete nut screwing compulsory; no thread must be showing.
Maillon Rapide quick links are only to be loaded along the major axis.
Maillon Rapide quick links should be carefully checked at regular intervals. If you are in any doubt about the safety of a quick link after checking, replace it with a new one.
When fastened with a wrench up to the proper tightening torque, Maillon Rapide quick links are considered a permanent connector.
Maillon Rapide should always be fitted with parts made of same material.
When connected with chain, Maillon Rapide quick links should be of the same diameter.
Never connnect any Maillon Rapide quick links onto a lifting chain.
Stainless steel Maillon Rapide quick links may be used in salt water.
P.P.E. EN 362 & EN 12275 Standards: Maillon Rapide quick links must be accopagnied by user instructions when sold or used as a connector on P.P.E. (Personal Protective Equipment).
