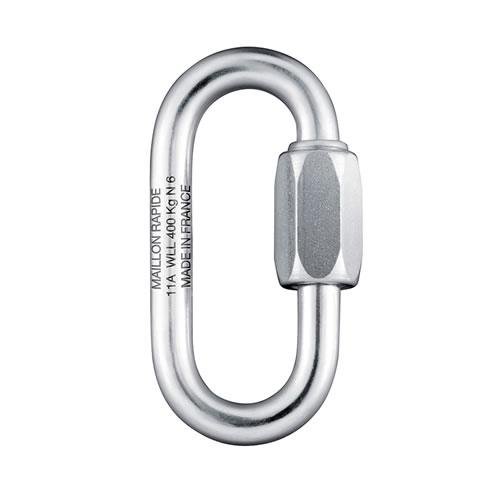

Peguet 3.5mm (1/8") Stainless Steel Standard Maillon Rapide Quick Link

Item #


Product Description

Peguet 3.5mm (1/8") Stainless Standard Maillon Rapide Quick Link

The original oval shape was developed on the principle of a chain link fitted with manual nut opening. This shape reflects the spirit of Maillon Rapide quick links connectors.

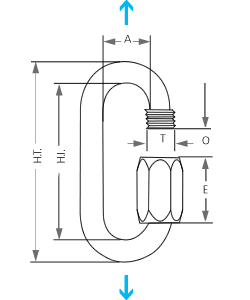

  • Diameter: 3.5MM or 1/8"

  • HT: 36mm

  • HI: 29mm

  • A: 10mm

  • O: 5mm

  • E: 11mm

  • T: 5mm

  • Weight: 8g (0.012 lbs)

  • Working Load: 220kg (485 lbs)

  • Breaking Load: 1100kg (2425 lbs)


  • Stainless Steel

  • Rod: Standard X2 Cr Ni, Mo 17-12-2 (1.4404), AISI 316L

  • Nut: Standard X2 Cr Ni

  • 18/12 chrome-molybdenum steel with very low carbon content, protected from inter-granular corrosion. (Rod & Nut)

  • Fit in environments where 18.10 steels stand up corrosion, excepted those involving nitric acid. (Rod & Nut)

  • 2/2,5 molybdenum content allowing its use in more applications than those complying with 18.10 steels, particularly with sulphuric acids and chlorides in marine environments. (Rod & Nut)

    Tightening Torque:

    Ø F 2,5 3,0 3,5 4,0 5,0 6,0 7,0 8,0 9,0 10,0 12,0 14,0 16,0 18,0 20,0

    Torque 0,15 0,30 0,60 0,70 0,80 1,20 2,50 3,00 4,50 7,00 9,00 12,00 18,00 30,00 40,00


  • Keep to the working load limit WLL engraved in kg.

  • Visual check of complete nut screwing compulsory; no thread must be showing.

  • Maillon Rapide quick links are only to be loaded along the major axis.

  • Maillon Rapide quick links should be carefully checked at regular intervals. If you are in any doubt about the safety of a quick link after checking, replace it with a new one.

  • When fastened with a wrench up to the proper tightening torque, Maillon Rapide quick links are considered a permanent connector.

  • Maillon Rapide should always be fitted with parts made of same material.

  • When connected with chain, Maillon Rapide quick links should be of the same diameter.

  • Never connnect any Maillon Rapide quick links onto a lifting chain.

  • Stainless steel Maillon Rapide quick links may be used in salt water.

  • P.P.E. EN 362 & EN 12275 Standards: Maillon Rapide quick links must be accopagnied by user instructions when sold or used as a connector on P.P.E. (Personal Protective Equipment).
