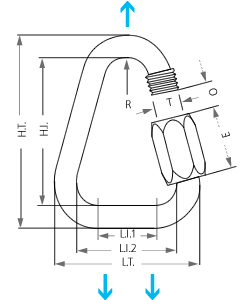

Peguet 3.5mm (1/8") Stainless Steel Delta Maillon Rapide Quick Link
Delta shape: developed after the ever-increasing development of webbing-fitted systems; perfect for webbing uphold onto its lower flat part.Specifications:
Diameter: 3.5MM or 1/8"
Weight: 10g (0.0220 lbs)
Working Load: 150kg (330 lbs)
Breaking Load: 750kg (1653 lbs)
Stainless Steel 316L
Rod: Standard X2 Cr Ni , Mo 17-12-2 (1.4404), AISI 316L
Nut: Standard X2 Cr Ni, idem, idem
18/12 chrome-molybdenum steel with very low carbon content, protected from inter-granular corrosion.
Fit in environments where 18.10 steels stand up corrosion, excepted those involving nitric acid.
2/2,5 molybdenum content allowing its use in more applications than those complying with 18.10 steels, particularly with sulphuric acids and chlorides in marine environments.
ط F 2,5 3,0 3,5 4,0 5,0 6,0 7,0 8,0 9,0 10,0 12,0 14,0 16,0 18,0 20,0
Torque 0,15 0,30 0,60 0,70 0,80 1,20 2,50 3,00 4,50 7,00 9,00 12,00 18,00 30,00 40,00
Keep to the working load limit WLL engraved in kg.
Visual check of complete nut screwing compulsory; no thread must be showing.
Maillon Rapide quick links are only to be loaded along the major axis.
Maillon Rapide quick links should be carefully checked at regular intervals. If you are in any doubt about the safety of a quick link after checking, replace it with a new one.
When fastened with a wrench up to the proper tightening torque, Maillon Rapide quick links are considered a permanent connector.
Maillon Rapide should always be fitted with parts made of same material.
When connected with chain, Maillon Rapide quick links should be of the same diameter.
Never connnect any Maillon Rapide quick links onto a lifting chain.
Stainless steel Maillon Rapide quick links may be used in salt water.
P.P.E. EN 362 & EN 12275 Standards: Maillon Rapide quick links must be accopagnied by user instructions when sold or used as a connector on P.P.E. (Personal Protective Equipment).
