Peguet 16mm (5/8") Stainless Steel Delta Maillon Rapide Quick Link

Item #


Product Description

Peguet 16mm (5/8") Stainless Steel Delta Maillon Rapide Quick Link

Delta shape: developed after the ever-increasing development of webbing-fitted systems; perfect for webbing uphold onto its lower flat part.

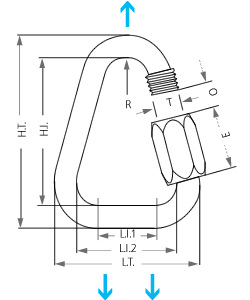

  • Diameter: 16MM or 5/8"

  • LT: 93mm

  • LI1: 31.5mm

  • LI2: 61mm

  • HT: 138mm

  • HI: 106mm

  • O: 19mm

  • E: 45mm

  • R: 14.75mm

  • T: 19mm

  • Weight: 627g (1.3823 lbs)

  • Working Load: 3150kg (6944 lbs)

  • Breaking Load: 15,750kg (34,723 lbs)


  • Stainless Steel 316L

  • Rod: Standard X2 Cr Ni , Mo 17-12-2 (1.4404), AISI 316L

  • Nut: Standard X2 Cr Ni, idem, idem

  • 18/12 chrome-molybdenum steel with very low carbon content, protected from inter-granular corrosion.

  • Fit in environments where 18.10 steels stand up corrosion, excepted those involving nitric acid.

  • 2/2,5 molybdenum content allowing its use in more applications than those complying with 18.10 steels, particularly with sulphuric acids and chlorides in marine environments.

    Tightening Torque:

    ط F 2,5 3,0 3,5 4,0 5,0 6,0 7,0 8,0 9,0 10,0 12,0 14,0 16,0 18,0 20,0

    Torque 0,15 0,30 0,60 0,70 0,80 1,20 2,50 3,00 4,50 7,00 9,00 12,00 18,00 30,00 40,00


  • Keep to the working load limit WLL engraved in kg.

  • Visual check of complete nut screwing compulsory; no thread must be showing.

  • Maillon Rapide quick links are only to be loaded along the major axis.

  • Maillon Rapide quick links should be carefully checked at regular intervals. If you are in any doubt about the safety of a quick link after checking, replace it with a new one.

  • When fastened with a wrench up to the proper tightening torque, Maillon Rapide quick links are considered a permanent connector.

  • Maillon Rapide should always be fitted with parts made of same material.

  • When connected with chain, Maillon Rapide quick links should be of the same diameter.

  • Never connnect any Maillon Rapide quick links onto a lifting chain.

  • Stainless steel Maillon Rapide quick links may be used in salt water.

  • P.P.E. EN 362 & EN 12275 Standards: Maillon Rapide quick links must be accopagnied by user instructions when sold or used as a connector on P.P.E. (Personal Protective Equipment).
