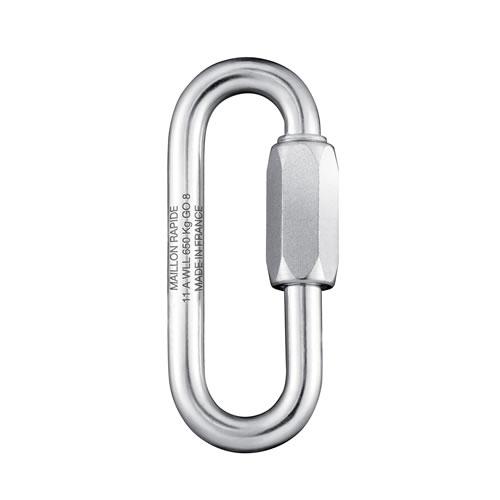

Peguet 14mm (9/16") Stainless Steel Large Opening Maillon Rapide Quick Link

Item #


Product Description

Peguet 14mm (9/16") Stainless Steel Large Opening Maillon Rapide Quick Link

Large Opening: an alternative to the Standard shape with identical purpose, for easier connection of wider parts.

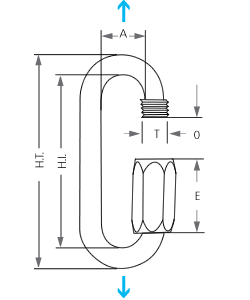

  • Diameter: 14MM or 9/16"

  • HT: 142mm

  • HI: 114mm

  • A: 26.5mm

  • O: 26.5mm

  • E: 49mm

  • T: 17mm

  • Weight: 431g (0.9502 lbs)

  • Working Load: 3100kg (6834 lbs)

  • Breaking Load: 15,500kg (34,172 lbs)


  • 316L Stainless Steel

  • Rod: Standard X2 Cr Ni, Mo 17-12-2 (1.4404), AISI 316L

  • Nut: Standard X2 Cr Ni, Idem, Idem

  • Rod: Molybdenum type 18/12 steel with a very low carbon content, protects against the risk of intergranular corrosion.

  • Nut: Can be used in environments where type 18.10 steels reside, with the exception of media combining nitric acid.

  • Molybdenum content equal to 2: 2.5 favoring jobs in areas larger than those provided for type 18.10 steels, particularly in the presence of sulfuric acid and chloride in the marine environment. (rod & nut).

    Tightening Torque:

    ط F 2,5 3,0 3,5 4,0 5,0 6,0 7,0 8,0 9,0 10,0 12,0 14,0 16,0 18,0 20,0

    Torque 0,15 0,30 0,60 0,70 0,80 1,20 2,50 3,00 4,50 7,00 9,00 12,00 18,00 30,00 40,00


  • Keep to the working load limit WLL engraved in kg.

  • Visual check of complete nut screwing compulsory; no thread must be showing.

  • Maillon Rapide quick links are only to be loaded along the major axis.

  • Maillon Rapide quick links should be carefully checked at regular intervals. If you are in any doubt about the safety of a quick link after checking, replace it with a new one.

  • When fastened with a wrench up to the proper tightening torque, Maillon Rapide quick links are considered a permanent connector.

  • Maillon Rapide should always be fitted with parts made of same material.

  • When connected with chain, Maillon Rapide quick links should be of the same diameter.

  • Never connnect any Maillon Rapide quick links onto a lifting chain.

  • Stainless steel Maillon Rapide quick links may be used in salt water.

  • P.P.E. EN 362 & EN 12275 Standards: Maillon Rapide quick links must be accopagnied by user instructions when sold or used as a connector on P.P.E. (Personal Protective Equipment).
