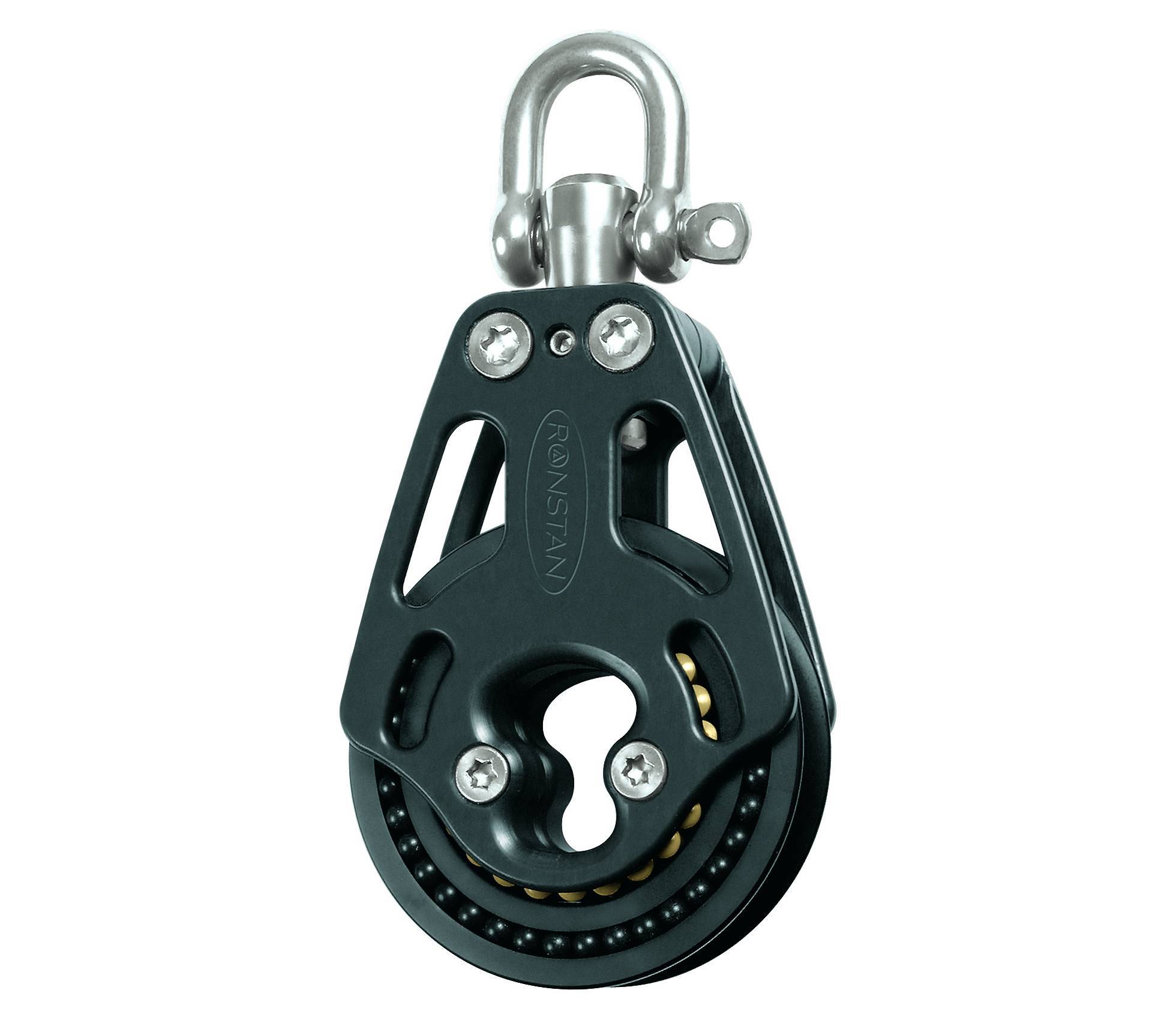

Ronstan Orbit Series 75 Single Block

Item #

RF79100

Usually ships within 1-3 days

Product Description

Orbit Series 75 Single Block

Features

  • The highest strength-to-weight ratio

  • Minimal friction loss, especially when working at high loads

  • Totally reliable and trouble free performance

  • Simplicity of design and construction to facilitate maintenance and servicing

  • Elegant, functional styling and finish.

  • Lockable swiveling head post

  • High strength forged shackle

    Sheave Ø - 3 in.

    Max. Rope Ø - 9/16 in.

    Max. Wire Ø - in.

    Pin Ø - 5/16 in.

    Max. Working Load - 5400 lb

    B. L. - 10800 lb

    Weight - 12.0 oz

    Product Information

    Orbit blocks™ are a no-compromise product range developed to meet the demands and expectation of the very dedicated and increasingly professional racing sailor. Side cheeks incorporating head structure and hub are precision machined as a single part from solid alloy, leaving material only where it contributes to the load carrying capacity of the block and eliminating the need for additional fasteners. The Orbit sheave has captive Acetal ball bearings for side thrust loads, eliminating the need for side retainer plates. This reduces weight and allows for a wider bearing surface that can accommodate longer Torlon® needles – achieving a substantially higher strength-to-weight ratio.

    Head posts of swivel blocks can be locked at 0 or 90 degrees.

    Applications

  • Primary mainsheet, halyard and spinnaker systems on boats to 14m (46ft)

  • Secondary mainsheet, vang blocks on boats to 15m (50ft)

  • Standard and running backstay systems on boats to 12m (40ft)

  • General control line and lead block applications on larger yachts

    Materials

  • Fully machined Alloy cheek plates

  • Alloy sheaves with captive ball races

  • Torlon® needle rollers

  • Carbon black Acetal ball bearings

  • Forged grade 17-4PH stainless steel shackles

  • Grade 316 stainless steel head post
