Product Description

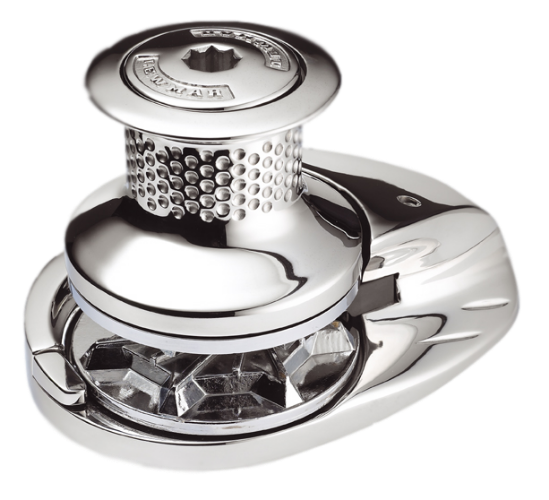

Lewmar V3 Gypsy Drum w/ FastFit 12V (003)
Kit includes: Windlass, Rocker Switch, Circuit Breaker, Contactor and Winch Handle.
Dimensions
A - 1 11/16" (42mm)
B - 3" (75mm)
C - 6 5/16" (161mm)
D - 13 3/4" (348mm)
E - 6 3/16" (157mm)
F - 2 3/4" (70mm)
G - 9 1/8" (237mm)
H1 - 3 5/8" (92mm)
H2 - 6 5/8" (168mm)
I - 4 1/4" (114mm)
J - 12 13/16" (310mm)
K - 6 13/16" (173mm)
Specifications
Model - V3
Motor Power Watts - 1000W
Normal Current Draw - 85A
Circuit Breaker - 110A
Max Pull - 1962 lbs. (890 kg)
Max Line Speed - 92ft/min (28m/min)
Working Load - 473 lbs. (215 kg)
Normal Line Speed - 92 ft. (28m)
App. Weight Gypsy Only - 47 lbs. (21.5 kg)
App. Weight Gypsy/Drum - 54 lbs. (24.5 kg)
Gypsy Specifications
Gypsy Number - 003
Chain Description - 10mm ISO, Campbell 3/8" S3, Lewmar 9.5mm G40*
Rope Description - 5/8" (16mm) 3-strand and 8-plait
Cable Sizes
Voltage - 12V
Length of Cable Run - 0'-23'(0-7mm) 23'-50'(7-15m) 6 AWG (16mm²) 2 AWG (25mm²)
Switch Wiring - 16 AWG (1.5mm²)
Current Rating for Switch Wire - 5A
