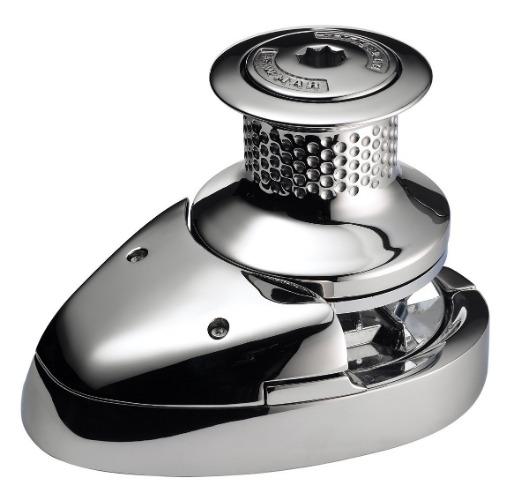

Lewmar V2 Gypsy Drum w/ FastFit 12V (003)

Item #

6672021110-138

Usually ships within 1-3 days

Product Description

Lewmar V2 Gypsy Drum w/ FastFit 12V (003)

Kit includes: Windlass, Rocker Switch, Circuit Breaker, Contactor and Winch Handle.

Dimensions

  • A - 1 11/16" (42mm)

  • B - 3" (75mm)

  • C - 6 5/16" (161mm)

  • D - 13 3/4" (348mm)

  • E - 6 3/16" (157mm)

  • F - 2 3/4" (70mm)

  • G - 9 1/8" (237mm)

  • H1 - 3 5/8" (92mm)

  • H2 - 6 5/8" (168mm)

  • I - 4 1/4" (114mm)

  • J - 12 13/16" (310mm)

  • K - 6 13/16" (173mm)

    Specifications

  • Model - V2

  • Motor Power Watts - 700W

  • Normal Current Draw - 80A

  • Circuit Breaker - 90A

  • Max Pull - 1433 lbs. (650 kg)

  • Max Line Speed - 69ft/min (21m/min)

  • Working Load - 358 lbs. (163 kg)

  • Normal Line Speed - 46 ft. (14m)

  • App. Weight Gypsy Only - 42 lbs. (19 kg)

  • App. Weight Gypsy/Drum - 48.5 lbs. (22 kg)

    Gypsy Specifications

  • Gypsy Number - 003

  • Chain Description - 10mm ISO, Campbell 3/8" S3, Lewmar 9.5mm G40*

  • Rope Description - 5/8" (16mm) 3-strand and 8-plait

    Cable Sizes

  • Voltage - 12V

  • Length of Cable Run - 0'-23'(0-7mm) 23'-50'(7-15m) 6 AWG (10mm²) 4 AWG (25mm²)

  • Switch Wiring - 16 AWG (1.5mm²)

  • Current Rating for Switch Wire - 5A
