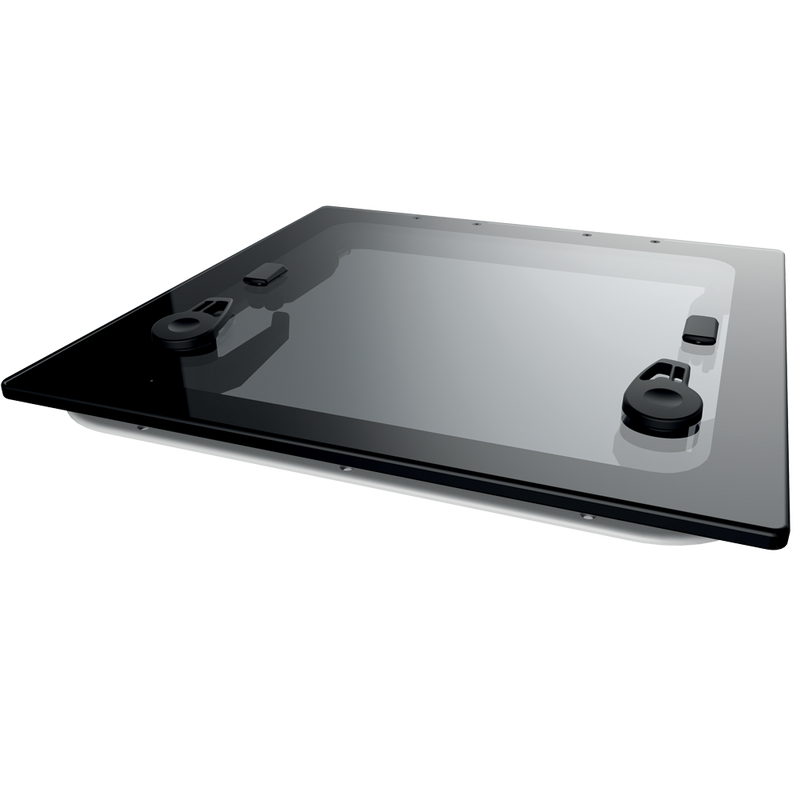

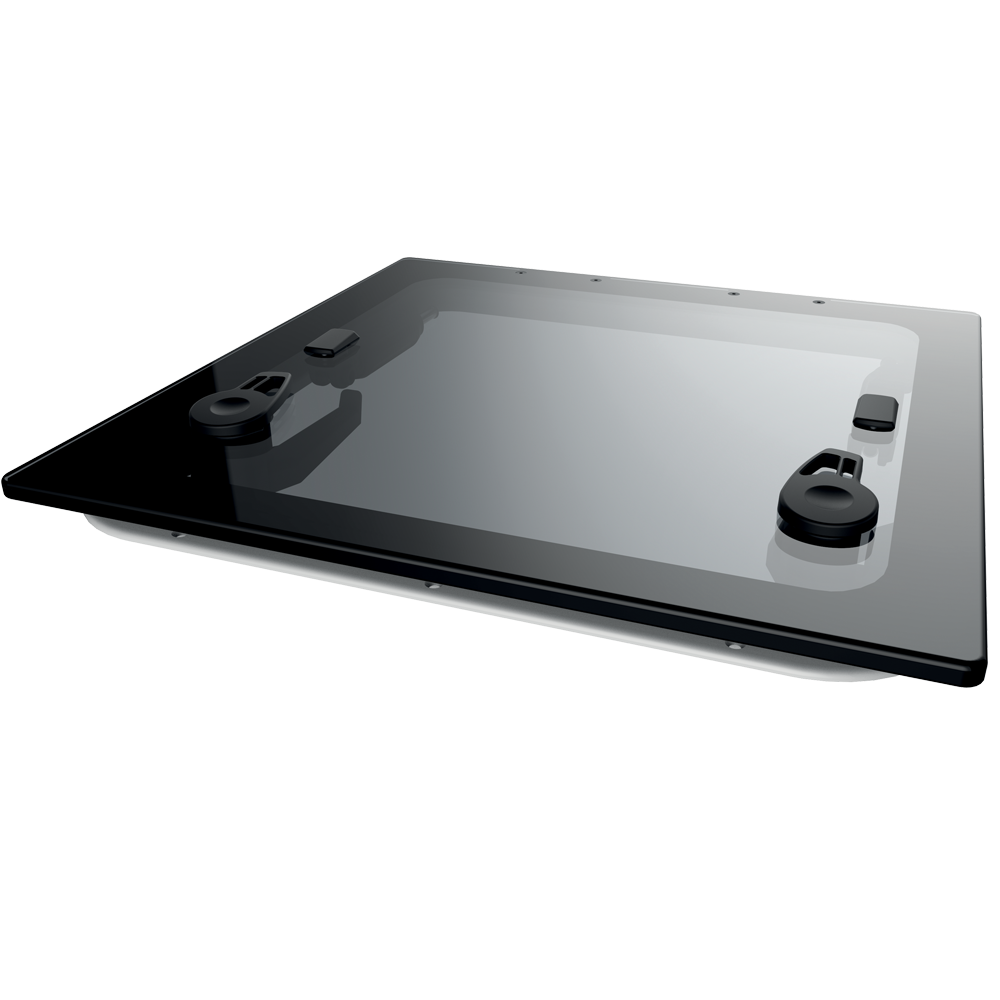

Lewmar Size 60 Flush Mount Hatch (Dark Grey Acrylic)Support System - 2 x Stay
Opening on the flush hatch is restricted to around 90 degrees. The hatch is only supplied with Power Boat stay(s).
Standard Color Specifications:
Dark Grey acrylic, white lower frame
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use (M6/ 1/4"). Fastening size for lower frame use 5mm CSK screw No. 10 UNC 2 BA
All sizes suitable for CE Area 2 (Deck, Coachroof, Cockpit and Transom).
Lower Frame (in) - 9/16
Acrylic Window Thickness (in) - 9/16
Length X (in) - 21 11/16
Width Y (in) - 22 11/16
Height Z (in) - 1 1/4
Radii R (in) - 3/8
Cut-Out Length X1 (in) - 19 15/16
Cut-Out Width Y1 (in) - 19 15/16
Cut-Out Radii R1 (in) - 11 1/16
