Lewmar Size 40 Atlantic Portlight

Item #

39140070

Usually ships within 1-3 days

Product Description

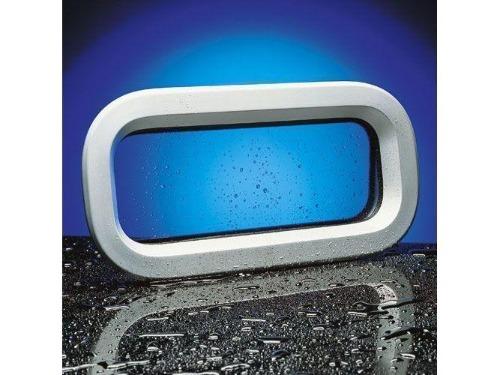

Lewmar Size 40 Atlantic Portlight

Specifications

  • Hull Valance - Thick

  • Version - Opening

  • Acrylic Color - Smoke Grey

  • Frame Color - Silver

  • Hatch Weight (lb) - 5.5

  • Acrylic Window Thickness (in) - 5/16

    Dimensions

  • Overall Width X (in) - 7 7/8

  • Overall Length Y (in) - 18 7/8

  • Overall Height Z (in) - 1/4

  • Overall Radii R (in) - 2 13/16

  • Cut-Out Width X1 (in) - 7 1/16

  • Cut-Out Length Y1 (in) - 18 1/8

  • Cut-Out Radii R1 (in) - 2 3/8

    Notes:

  • Portlights and fixed lights should be fitted to a flat surface with a maximum tolerance 1mm

  • Smoke grey acrylic and silver anodized frames

  • Portlight opening is restricted on very thick hulls. At 24mm hull thickness, opening angle is 115

  • Thick Hull Valance Fastening Required

  • Hull thickness 16-19mm: M5 x 20mm long (kit ref 360362999)

  • Hull thickness 20-24mm: M5 x 25mm long (kit ref 360361999)

  • Supplied as standard with thick hull valances

  • Fastening kits supplied in bag of 100
