Product Description

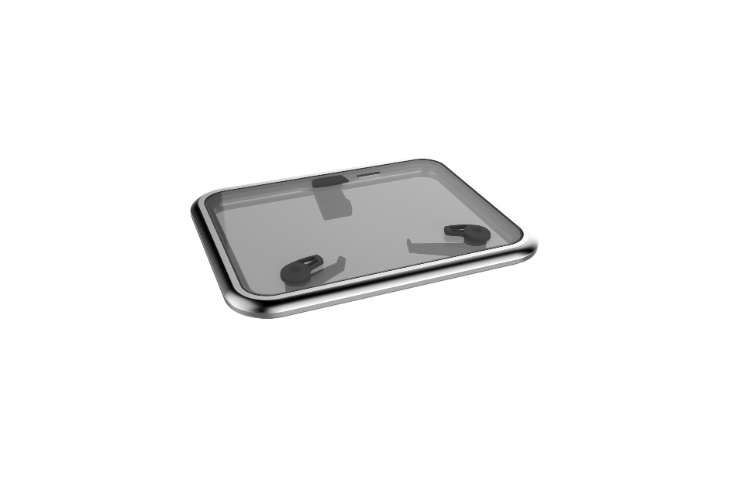

Lewmar Size 30 Medium Profile Hatch
All sizes suitable for CE Area 2 (Deck, Coach roof, Cockpit and Transom).
Mounting Instructions:
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use (M6 / 1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
Specifications
Lower Frame (in) - 9/16
Acrylic Color - Smoke Grey
Hatch Weight (lb) - 11.1
Acrylic Window Thickness (in) - 1/2
Dimensions
Length X (in) - 15 5/8
Width Y (in) - 20 3/4
Height Z (in) - 1 1/4
Radii R (in) - 2 7/8
Cut-Out Length X1 (in) - 12 7/8
Cut-Out Width Y1 (in) - 18
Cut-Out Radii R1 (in) - 1 11/16
