Product Description

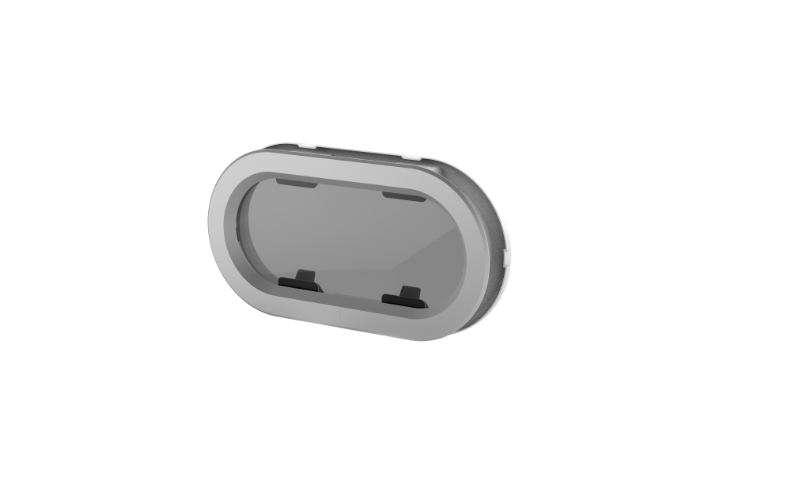

Lewmar Size 1 Round End Standard Portlight
Specifications
Acrylic color - Smoke Grey
Version - Opening
Weight (lb) - 2.86
Acrylic Window Thickness (in) - 5/16
Dimensions
Overall Width X (in) - 7 1/2
Overall Length Y (in) - 14 7/16
Overall Height Z (in) - 5/32
Overall Radii R (in) - 3 3/4
Cut-Out Width X1 (in) - 6 3/4
Cut-Out Length Y1 (in) - 13 5/8
Cut-Out Radii R1 (in) - 3 3/8
Installation
Fast and easy installation with no complicated cut-out shape.
Portlights should be fitted to a flat surface with a maximum tolerance of 1mm
Maximum hull thickness 34mm (1 3/8 in), minimum hull thickness 7mm (1/4in)
Acrylic color is Smoke Grey
All Portlights are supplied complete with 12 off M5 25mm screws (hull thickness 17-25mm)
Design category A - Sail & Power, Area 2 CE Approved
