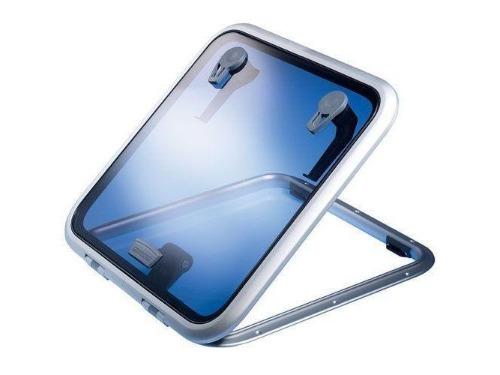

Lewmar Size 10 Low Porfile Self Supporting HatchSupport System - Self Supporting
Size 10 Low Profile with Stay is made to order. All sizes suitable for CE Area 2 (Deck, Coach roof, Cockpit and Transom).
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use (M6 / 1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
Lower Frame (in) - 9/16
Acrylic Color - Smoke Grey
Hatch Weight (lb) - 4.9
Acrylic Window Thickness (in) - 5/16
Length X (in) - 13
Width Y (in) - 13
Height Z (in) - 1
Radii R (in) - 2 7/8
Cut-Out Length X1 (in) - 10 1/4
Cut-Out Width Y1 (in) - 10 1/4
Cut-Out Radii R1 (in) - 1 11/16
