Product Description

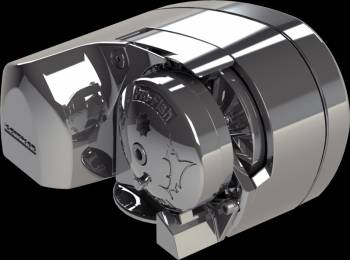

Lewmar Pro Fish Windlass 1000 RC 5/16" (G4 & BBB)
Kit Includes: Windlass, base gasket seal, fast mounting studs, installation wrench, circuit breaker, dual-direction solenoid and rocker switch.
Specifications
Max Chain - 5/16" (8mm)
Motor Power Watts - 700W
Normal Current Draw - 50A
Circuit Breaker - 70A
Max Pull - 1000 lbs. (454 kg)
Max Line Speed - 105ft/min (32m/min)
Working Load - 250 lbs. (114 kg)
Line Speed/min - 105ft (32m)
Weight - 21 lbs. (9.5 kg)
Gypsy Specifications
Gyspy Number - 516
Chain Description - 5/16" G4
Rope Description - 9/16"-5/8" (14-16mm) 3-strand and 8-plait (5/8" Only)
Cable Sizes
Voltage - 12V
Length of Cable Run - 0'-23'(0-7m) 23'-50'(7-15m) 8 AWG (10mm²) 4 AWG (16mm²)
Switch Wiring - 16 AWG (1.5mm²)
Current Rating for Switch Wire - 5A
